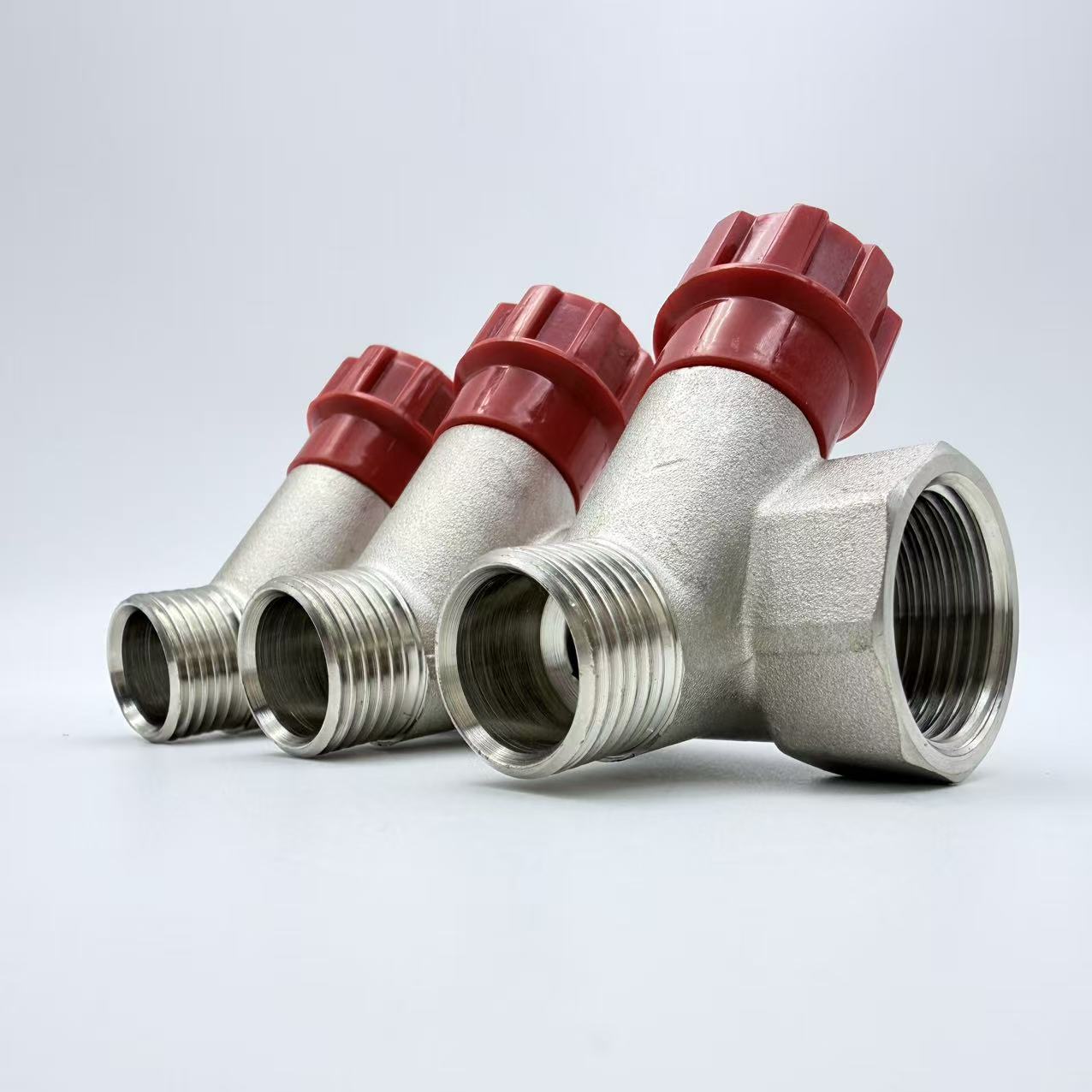

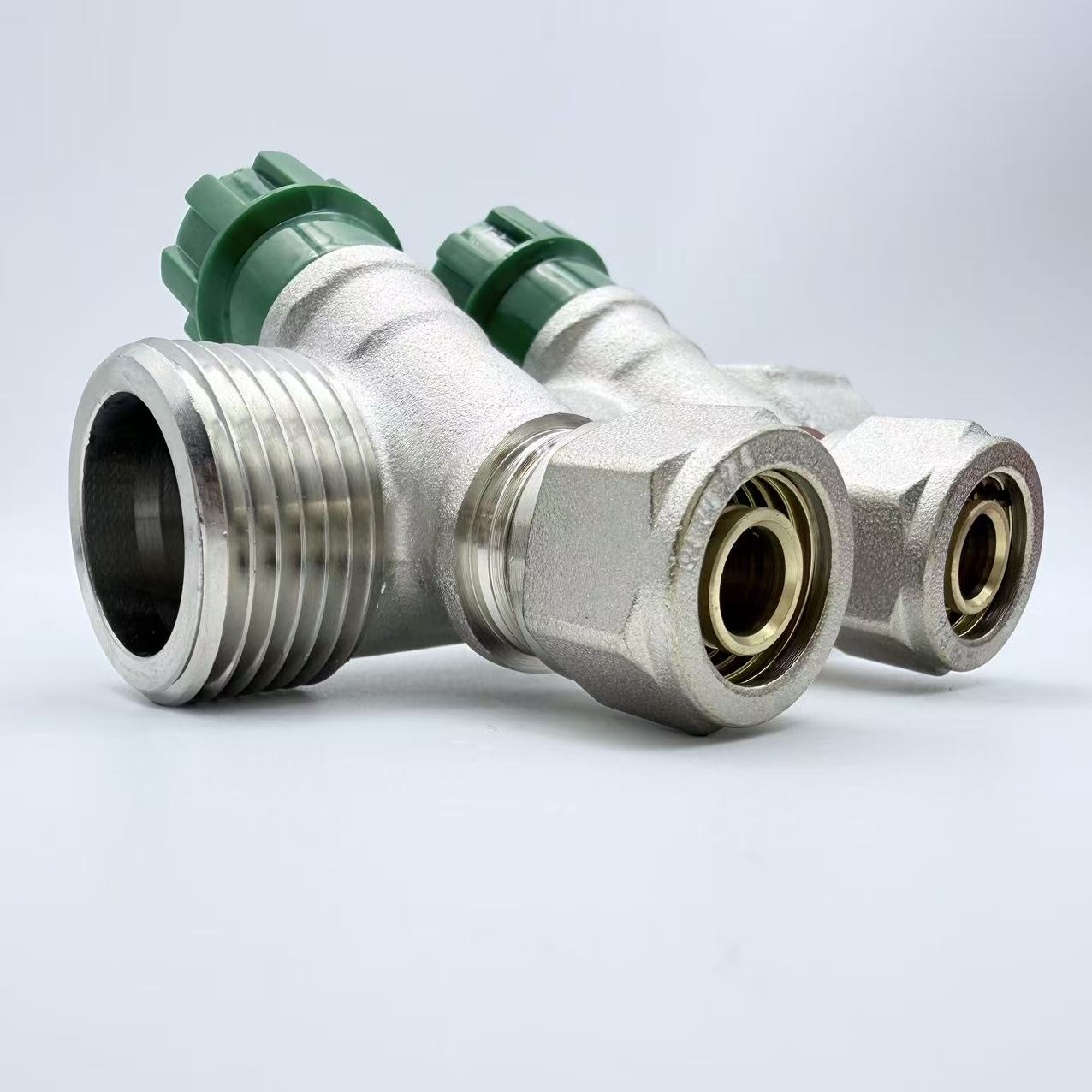

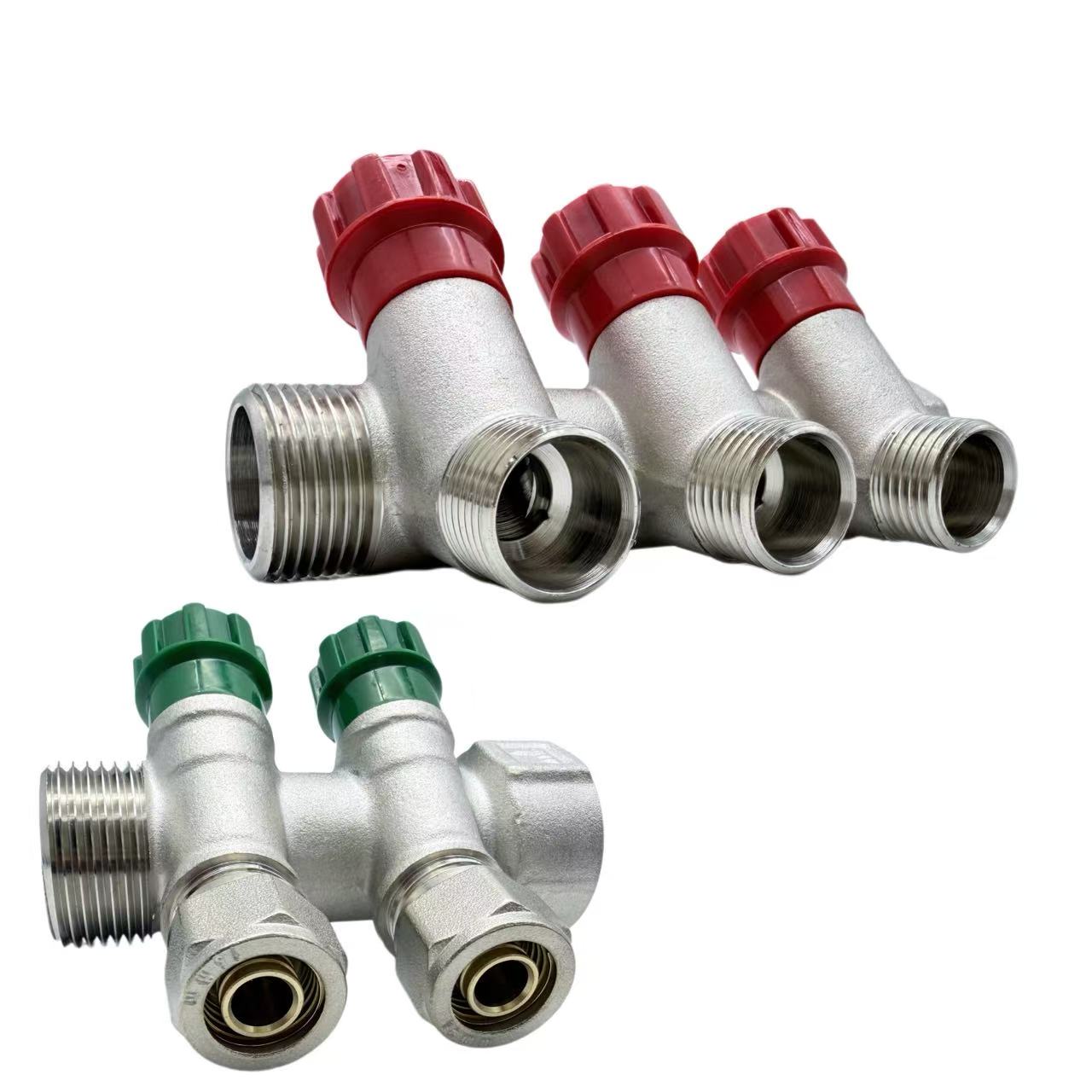

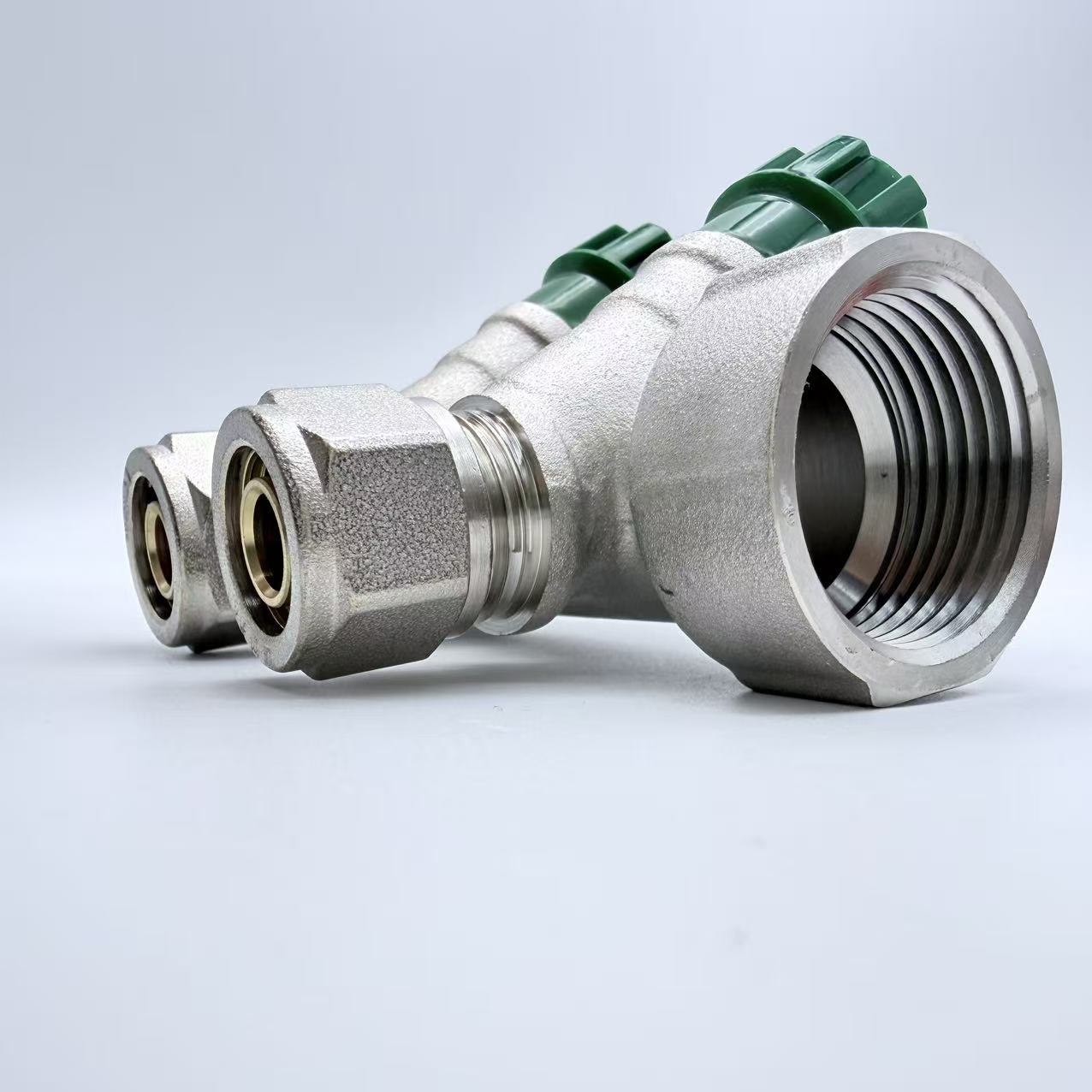

45-Degree Manifold for Underfloor Heating Systems
The 45-Degree Manifold for Underfloor Heating Systems is a distribution unit specifically designed for underfloor heating systems. Featuring inlet and outlet ports angled at 45 degrees relative to the main pipeline, it optimizes piping layouts, minimizes flow resistance, and facilitates flexible routing and connection in confined spaces or installations close to walls. Manufactured in China by Shenchi, this 45° manifold is crafted from high-quality materials—such as brass, 304 stainless steel, and 316L stainless steel—and incorporates an optimized 45° flow channel design to ensure precise flow distribution and stable temperature control. Available from a professional supplier for bulk procurement, it is ideal for residential heating systems.
Shenchi 45-Degree Manifold for Underfloor Heating Systems adopts a scientific flow channel layout to ensure stable circulation of heating media and compatibility with various floor heating pipelines. The product offers high and low temperature resistance, maintaining reliable performance under different temperature conditions. Customized solutions are available for residential decoration, commercial buildings, and centralized heating projects.
Product Specifications
|
Product Name: 45-Degree Manifold for Underfloor Heating Systems |
Specifications: (1/8"–4") DN6–DN100 |
|
Nominal Pressure: PN16 |
Body Material: Brass, SUS304, SUS316L |
|
Standards: ANSI, BS, DIN, ISO, JIS |
Threads: NPT, BSP, BSPT, DIN, etc. |
|
Applications: Water distribution for underfloor heating systems; hot and cold water circulation control |
Medium Temperature: -20°C to 110°C (varies based on seal material) |
|
Number of circuits: 2, 3, 4, 5, etc. |
Seals: EPDM |
|
Connection Type: Threaded connection |
Applicable Systems: Hydronic underfloor heating, heating circulation systems, residential heating, commercial/project heating |
|
Origin: China |
Samples: Samples available upon request |
Angled Flow Channel Design for Improved Heating Circulation
Schenchi 45-Degree Manifold for Underfloor Heating Systems is manufactured in China with high-quality copper, SUS304, and SUS316L materials. As a professional manufacturer, the product is designed for water distribution in underfloor heating systems. The 45° angled structure optimizes water flow direction, reduces pipeline resistance, and ensures stable hot and cold water circulation. Available with 2-5 circuits for residential heating and engineering projects.
PN16 Pressure Performance for Reliable Operation
The product features a PN16 pressure rating and precision manufacturing technology to enhance pressure resistance. It maintains stable performance within a temperature range of -20℃ to 110℃. Schenchi 45-Degree Manifold for Underfloor Heating Systems is equipped with EPDM sealing components to improve connection sealing and reduce leakage risks. As a China-made supplier, we provide detailed quotation lists and bulk purchasing services with high cost-performance heating solutions.
Multi-standard Compatibility for Flexible Installation
Schenchi 45-Degree Manifold for Underfloor Heating Systems supports ANSI, BS, DIN, ISO, and JIS standards. Thread options include NPT, BSP, BSPT, and DIN specifications for compatibility with different installation systems. The threaded connection design provides easy and reliable installation. With corrosion resistance, it is suitable for water floor heating, heating circulation systems, and construction projects. Factory-direct supply is available for long-term cooperation.
Stable Supply Chain with Customized Solutions
With an integrated manufacturing and trading model, Schenchi provides bulk supply services for 45-Degree Manifold for Underfloor Heating Systems, including material selection, specification adjustment, and sample production according to customer requirements. Covering DN6-DN100 sizes, the product is suitable for various pipeline systems. With reasonable cost pricing and stable quality, it offers reliable solutions for decoration companies, engineering contractors, and overseas buyers.
