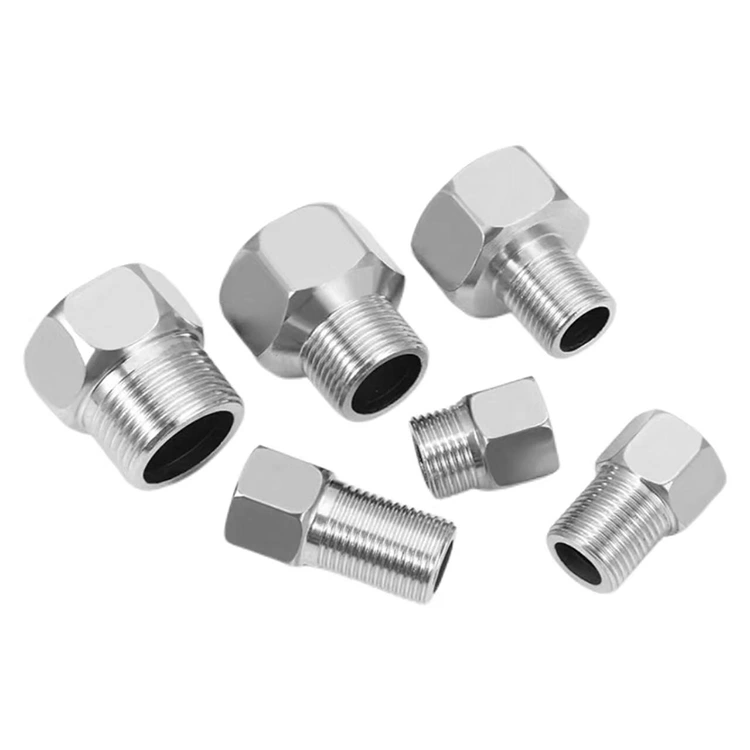

Shenchi is a professional manufacturer in China specializing in high-quality Male-Female Thread Adapters. Made from premium stainless steel with precision-machined threads, these adapters enable reliable conversion between female and male threads in piping systems, offering excellent sealing performance and easy installation.
As an integrated manufacturer and trading company operating a press-fitting direct factory, Shenchi maintains full control over the entire process from raw materials to finished products. By choosing our Male-Female Thread Adapters, you deal directly with the manufacturer, eliminating middleman markups, resulting in lower procurement costs and shorter delivery times.
What Does a Male-Female Thread Adapter Do?
A Male-Female Thread Adapter is primarily used in piping systems to resolve mismatches between different interface types. Through threaded connections, it allows pipes, valves, or equipment of different specifications or types to be connected smoothly.
Core Performance Advantages
1. Structural Strength
Integrated precision forging: Manufactured using integral forging technology to eliminate sand holes and cracks, resulting in high structural density capable of withstanding high pressure and external impact without fracturing.
2. Sealing and Leak Prevention
High end-face flatness: The end faces of the adapter are precision-machined, ensuring better contact when used with sealing gaskets or thread seal tape, further enhancing leak prevention.
3. Connectivity and Adaptability
Multi-standard compatibility: Available in metric, British, and American (NPT) thread standards, suitable for internationally common hydraulic, pneumatic, and plumbing equipment interfaces.
4. Corrosion Resistance and Working Condition Adaptability
Various surface treatment options: Zinc plating, blackening, passivation, or epoxy coating are available to resist corrosion from oil, moisture, and mild acid/alkali environments.
5. Installation and Maintenance Convenience
Reusable: The mechanical threaded connection allows for disassembly without damaging the body or the interface, enabling reuse during maintenance and reducing replacement costs.
Product Specifications
| Parameters | Specifications |
| Fitting Type | Male-Female Thread Adapter |
| Operation Mode | Manual |
| Connection Type | Threaded |
| Rated Pressure | PN16 |
| Size Range | 1/8" to 4" (DN6 to DN100) |
| Material | Brass, SUS304, SUS316L |
| Seal Material | EPDM |
| Temperature Range | -20°C to 120°C |
| Applicable Standards | Standards: ANSI, BS, DIN, ISO, JIS |
Types
Industrial Grade Hexagonal Male x Female Threaded Connector: It eatures a hexagonal body with male threads on both ends. Used to connect female-threaded pipes or equipment, serving as an extension or adapter.
Reducing Hexagonal Male x Female Threaded Connector: It eatures male threads on one end and female threads on the other, with different diameters on each end. Used to connect pipes of varying diameters, enabling size transitions.
