An Angle Stop Valve, also known as an angle valve, is named for its 90-degree angled body and two ports. As a key control component in bathroom spaces, it is installed on the wall to connect flexible hoses to the wall water inlet, serving as an adapter and shut-off valve beneath fixtures such as toilets, basins, and water heaters.
Its core functions include: adapting between internal and external water outlets, regulating water pressure, providing independent shut-off for easy maintenance, and enhancing the appearance of wall-mounted plumbing.
Shenchi is a professional manufacturer and supplier of Angle Stop Valves in China. We strictly adhere to national industry standards and utilize high-quality copper and stainless steel to provide safe and reliable bathroom water control solutions to customers worldwide.
What is an Angle Stop Valve?
An Angle Stop Valve is a small valve with a 90-degree angled body, typically featuring one water inlet, one water outlet, and a control handle. It is primarily used in bathrooms. Installed on the wall, it connects the water supply pipe to the flexible hoses of fixtures such as toilets, basins, and water heaters, serving to control water flow, regulate volume, and facilitate maintenance.
Key Advantages
1. Strong Corrosion Resistance
Made of 304 or 316 stainless steel, these valves offer exceptional corrosion resistance, effectively withstanding damp environments, acidic and alkaline media, as well as chloride ions in tap water.
2. Healthy and Eco-Friendly
Compliant with drinking water hygiene standards, they are especially suitable for applications with high water quality requirements, such as direct drinking water systems, kitchen sinks, and water purifiers.
3. High Strength
The stainless steel construction provides high mechanical strength, excellent tensile and compressive resistance, wear resistance, thermal shock resistance, and is resistant to deformation and cracking.
4. Superior Appearance
The surface is finished with brushing or polishing to highlight the natural metallic luster. The fine texture and modern aesthetic complement a variety of interior styles, resisting fading and wear while offering both functionality and visual appeal.
Product Parameters
| Parameters | Specifications |
| Angle Valve Type | Angle Stop Valve |
| Operation Method | Manual |
| Connection Type | Threaded |
| Rated Pressure | PN16 |
| Size Range | G3/8, G1/2, G3/4 |
| Body Material | Brass, SUS304, SUS316L |
| Seal Material | EPDM |
| Operating Temperature | -10°C ~ 90°C |
Types

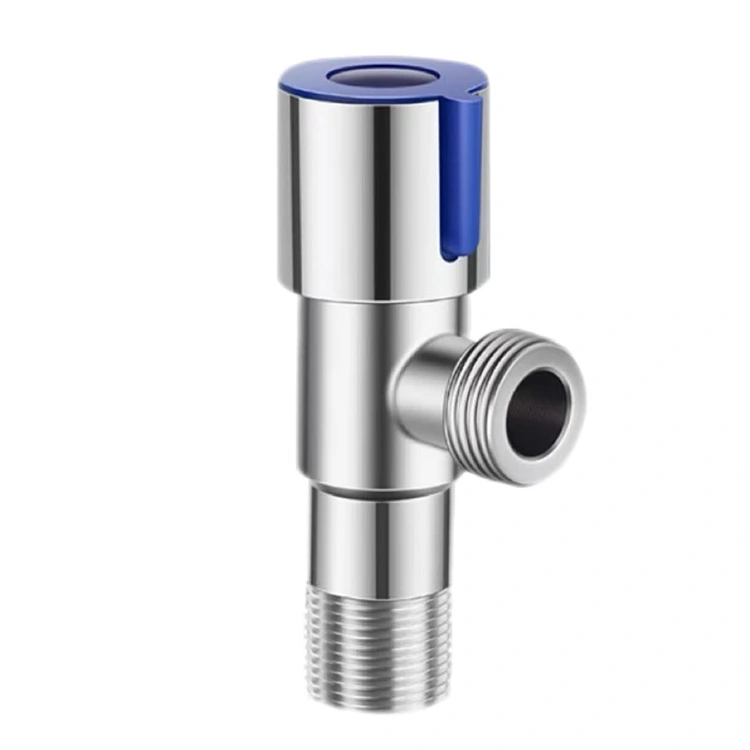

Brushed Blue Handle Angle Stop Valve
Suitable for standard cold water applications such as basins and toilets. The valve body is forged from high-quality stainless steel or brass, with a brushed surface finish for enhanced corrosion resistance.

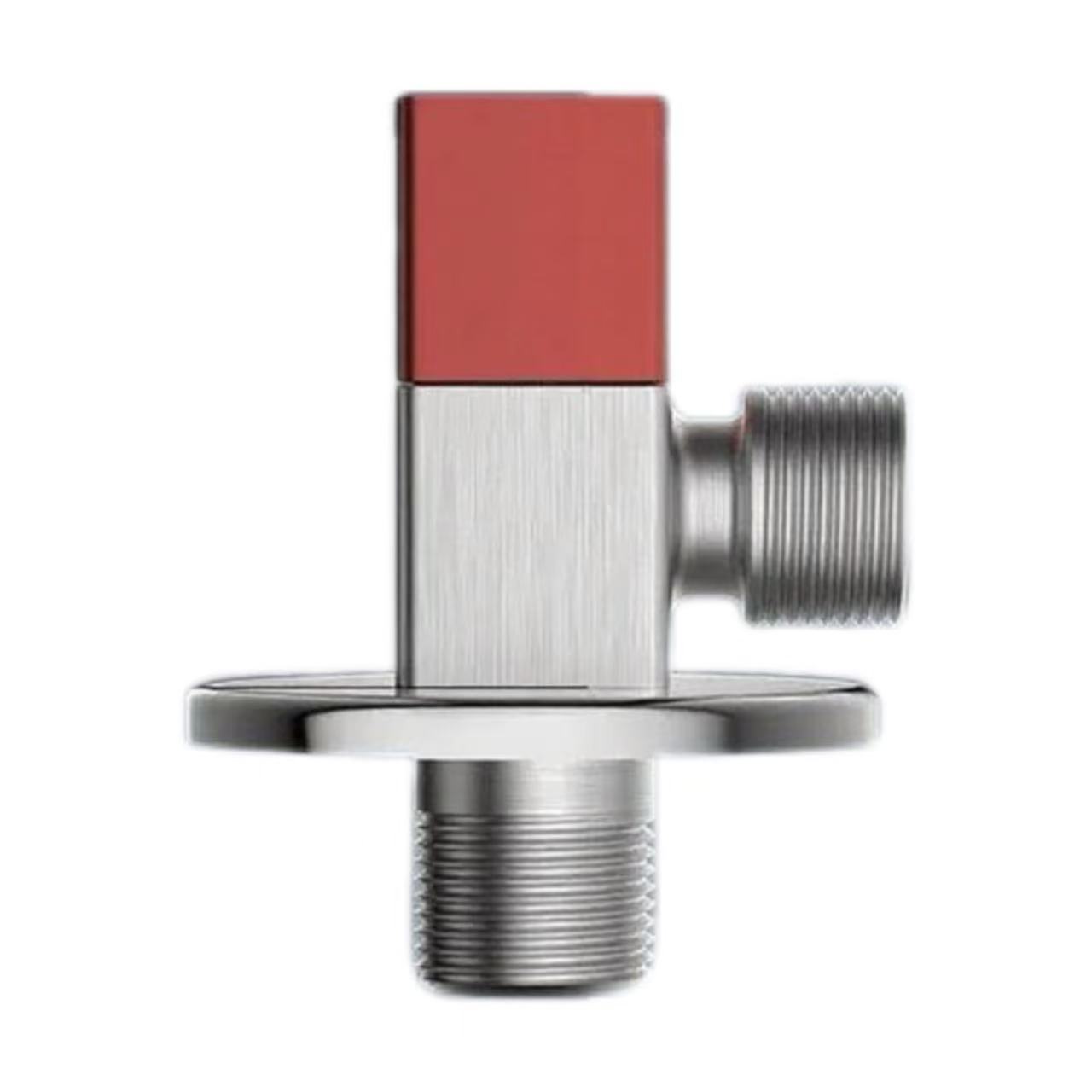

Heater Control Angle Valve
Specifically designed for high-flow equipment such as electric water heaters and instant water heaters. Features a straight-through, large-diameter design that minimizes water flow resistance, meeting the water inlet requirements of water heaters.
