Professional OEM Manufacturer of Press-Fit Elbows in China

The Press-Fit Elbow produced at Shenchi factory is a high-quality connector specifically designed for modern piping systems. As a professional Press-Fit Elbow supplier in China, we understand the critical importance of pipeline safety. Shenchi, as an integrated manufacturer, uses high-quality stainless steel combined with precision press-fit technology to ensure that every elbow is easy to install, securely connected, and provides long-lasting leak prevention. Choosing Shenchi as your supplier means selecting full-chain quality control from raw materials to finished products, with direct factory supply ensuring stable quality and efficient delivery.

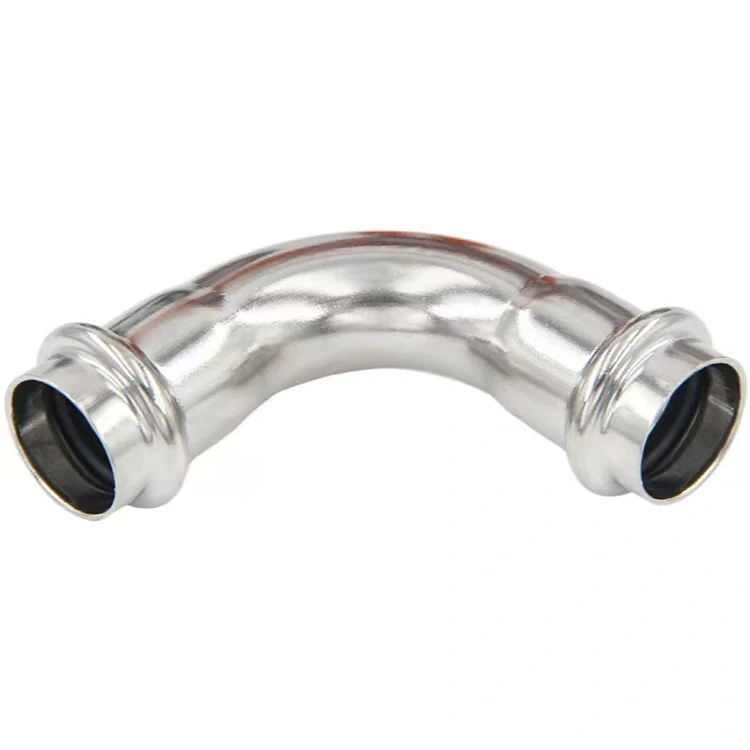

Press-Fit Elbow

What is a Press-Fit Elbow?

A Press-Fit Elbow is a pipe fitting used for pipeline connections, shaped with an angle (typically 90 or 45 degrees) to change the direction of piping. Its core feature is the press-fit connection—using a specialized tool to crimp the fitting and pipe together, achieving a secure seal without the need for welding or threading.

What Are Its Characteristics?

Advanced Connection Method: Utilizes press-fit connections that require no welding or threading. Installation is completed using a specialized tool, significantly improving construction efficiency.

Excellent Sealing Performance: Built-in O-ring seal creates a robust mechanical lock and dual sealing after crimping, effectively preventing water and gas leakage.

Durable Material: Made from high-quality stainless steel, offering corrosion resistance, aging resistance, and a long service life. Suitable for demanding piping systems such as drinking water and gas.

Low Installation Cost: Compared to traditional welding, no specialized welders are required, and there are no restrictions related to open flames, resulting in lower overall installation costs.

Product Specifications

Parameters	Specifications
Fitting Type	Press-Fit Elbow
Operation Mode	Manual
Connection Type	Press-Fit
Rated Pressure	PN16
Size Range	1/8" to 4" (DN6 to DN100)
Material	Brass, SUS304, SUS316L
Seal Material	EPDM
Temperature Range	-20°C to 120°C
Applicable Standards	Standards: ANSI, BS, DIN, ISO, JIS

Different Types of Press-Fit Elbows

Type	Description
Single-Press Male NPT 90-Degree Elbow	Features a press-fit connection on one end and male threads on the other, used for directional changes connecting press-fit piping to threaded interfaces.
Double-Press Equal 90-Degree Elbow	Features double-press connections on both ends, leaving two crimping marks after installation. Provides a stronger seal and greater pull-out resistance, suitable for demanding piping systems.
Double-Press 90-Degree Female Threaded Elbow	Features a double-press connection on one end and female threads on the other, facilitating connection to threaded interfaces such as faucets and valves while achieving a 90-degree directional change.

Double-Press Male NPT 90 Degree Elbow

The Double-Press Male NPT 90 Degree Elbow is a press-fit fitting that requires a turn. Shenchi, as a factory in China specializing in the production of Double-Press Male NPT 90 Degree Elbows, offers this product with advantages in corrosion resistance, pressure resistance, and suitability for European standard applications such as HVAC and water supply/drainage. With factory-direct supply and outstanding cost-effectiveness, it is the preferred pipe fitting for European standard projects.

Double-Press Equal 90 Degree Elbow

The Double-Press Equal 90 Degree Elbow is a fitting with excellent sealing performance. Shenchi, as a professional manufacturer of Double-Press Equal 90 Degree Elbows in China, primarily produces elbows that meet European standards. Its sealing structure ensures a firm connection, preventing leakage at pipeline turns. It is corrosion-resistant, pressure-resistant, and enables weld-free rapid installation, suitable for scenarios such as HVAC, water supply and drainage, and industrial pipelines meeting European standards.

Double Clamp 90 Degree Internal Thread Conversion Elbow

The Double Clamp 90 Degree Internal Thread Conversion Elbow is a pipe fitting that changes direction and converts the connection method simultaneously. Shenchi, as a manufacturer of press-fit elbows in China, offers products that are corrosion-resistant, pressure-resistant, and enable weld-free rapid installation, suitable for scenarios such as HVAC, water supply and drainage, and industrial pipelines meeting European standards.

Single-press 90-degree Female Elbow

The Single-press 90-degree Female Elbowis a thin-walled stainless steel pipe fitting that changes the flow direction of a pipeline and has an internal thread interface at one end. Made in China – Shenchi Single-press 90-degree Female Elbowwholesale, press-fit connection requires no welding, internal thread end connects directly to equipment, 90° turn for flexibility and space saving.

Single-clamp 90-degree elbow

A Single-clamp 90-degree elbow is a thin-walled stainless steel pipe fitting used to change the flow direction in pipelines. Made in China – Shenchi's professional Single-clamp 90-degree elbow eatures a press-fit connection that eliminates the need for welding, a flexible 90°turn that saves space, and is the preferred choice for thin-walled stainless steel pipelines.
