Union Threaded Fitting - Shenchi – Direct Supply from the Factory
The Union Threaded Fitting is a key connector in piping systems that facilitates easy assembly and disassembly, allowing equipment to be disconnected or installed without rotating the entire pipe. This makes inspection and maintenance extremely convenient. As a professional pipe fittings manufacturer in China, Shenchi produces Union Threaded Fittings using high-quality brass and stainless steel. The threads are precision-machined for a tight fit, offering excellent pressure resistance and corrosion resistance while preventing leaks. These fittings are suitable for various engineering piping systems such as water supply and heating.
What is a Union Threaded Fitting?
A Union Threaded Fitting is a pipe connector composed of a nut and a joint, used to connect two pipes. Its key feature is that it allows disassembly without rotating the pipes, facilitating easy maintenance or equipment replacement. It offers good sealing performance and can be reused multiple times.
Maintenance Tips
Regular Inspection: Check for leaks or looseness and tighten as needed.
Avoid Over-tightening: Hand-tighten first, then gently tighten with a tool. Over-tightening may damage the threads.
Rust and Corrosion Prevention: Keep the surface dry and avoid contact with corrosive substances.
Seal Ring Care: If a gasket is used, regularly check for aging or deformation and replace if necessary.
Disassembly Caution: Protect the threads during disassembly to prevent damage. Clean the threads thoroughly before reassembly to ensure smooth connection.
Product Specifications
| Parameters | Specifications |
| Fitting Type | Union Threaded Fitting |
| Operation Mode | Manual |
| Connection Type | Threaded |
| Rated Pressure | PN16 |
| Size Range | 1/8" to 4" (DN6 to DN100) |
| Material | Brass, SUS304, SUS316L |
| Seal Material | EPDM |
| Temperature Range | -20°C to 120°C |
| Applicable Standards | Standards: ANSI, BS, DIN, ISO, JIS |
Product Types
High-Temperature Female Union Elbow: Made with high-temperature-resistant material and female threads, suitable for turning points in hot water or heating systems.

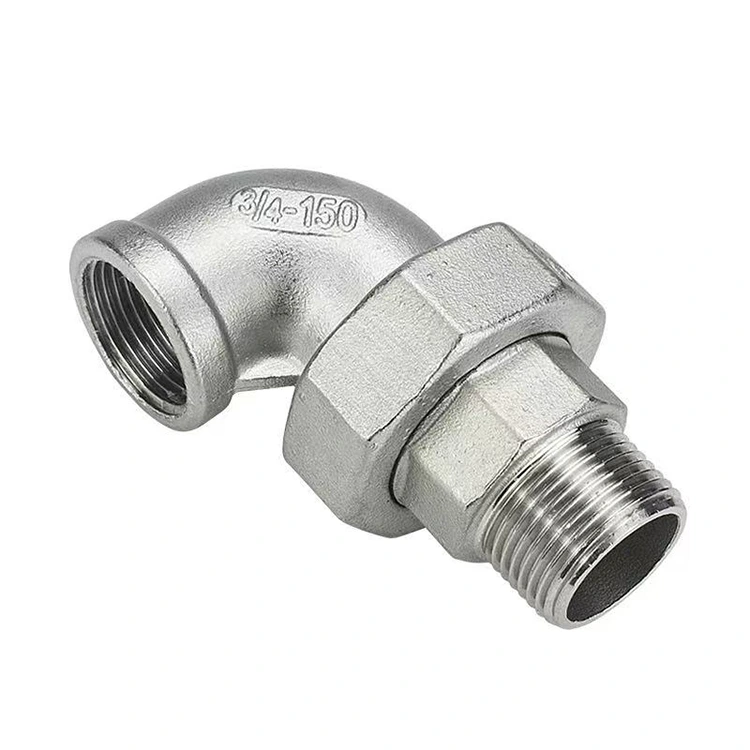

Easy-Install Male Union Elbow: Features male threads for quick installation, ideal for fast connections at pipe bends.
Female Threaded Union Tee: With female threaded ports and a three-way branch, facilitates maintenance and branch line connections.
