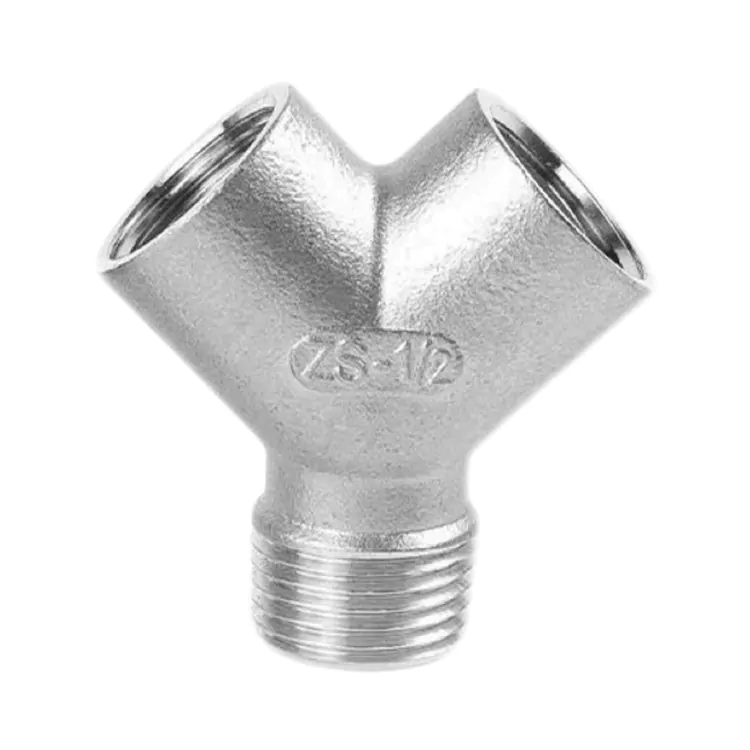

BSP Stainless Steel Female-Female-Male Y-Type Pipe Tee

Shenchi, a professional manufacturer in China, offers high-performance BSP Stainless Steel Female-Female-Male Y-Type Pipe Tee, which combines a 45° Y-shaped streamlined structure with a hybrid thread design—two female threaded ports and one male threaded port. Shenchi products are made from high-grade stainless steel or brass, and precision casting ensures a dense structure and accurate angles.

Its core function is to achieve smooth fluid diversion or merging while simultaneously completing thread type conversion: the female threaded ports connect to male threaded fittings, while the male threaded port is directly screwed into female threaded equipment. One single fitting can replace the combination of a “Y-type tee + thread adapter,” significantly reducing connection points and minimizing leakage risks. It is especially suitable for space-constrained or complex pipeline systems requiring simplified layouts. In addition, we also supply Female-Male-Male Y-Type Pipe Tee, forming a complete product matrix.



Product Parameters



Product Name: BSP Stainless Steel Female-Female-Male Y-Type Pipe Tee	Sizes: (1/8"–4") DN6–DN100
Nominal Pressure: PN16	Body Material: Brass, SUS304, SUS316L
Standards: ANSI, BS, DIN, ISO, JIS	Threads: NPT, BSP, BSPT, DIN, etc.
Internal Metal Material: Brass, SUS304, SUS316L	Medium Temperature: High, Low, Medium, Ambient
Operation Mode: Manual	Seals: EPDM
Connection Type: Threaded	Suitable for: Water, Air, Gas, Oil, Liquids, etc.
Place of Origin: China	Samples: Make samples for free





Customization Services

Shenchi fully offers customization services to meet the personalized needs of global customers. As a source factory, we understand that standard products cannot cover all application scenarios, so we provide flexible ODM/OEM solutions:

Specification Customization

Custom sizes such as special diameters, wall thickness, and angles can be produced according to customer drawings. Whether equal or reducing designs, Shenchi can meet requirements with precision.

Thread Customization

Supports BSP, NPT, metric threads, and other international standards, as well as customer-specified special thread types. The combination and layout of female and male threads can also be adjusted according to installation needs.

Material Customization

Shenchi provides options such as stainless steel 304/316 and high-quality brass. Stainless steel is suitable for humid, acidic, or alkaline environments, while brass offers high cost-effectiveness for general plumbing applications.

Surface Treatment Customization

Depending on application and aesthetic requirements, options include pickling and passivation, electrolytic polishing, and nickel plating. Pickling enhances corrosion resistance; electrolytic polishing provides a mirror-like finish for easy cleaning; nickel plating offers both corrosion protection and decorative appearance.

Brand Customization

Supports logo laser marking, custom packaging design, and labeling services to help customers build their own brands and enhance market recognition.

Flexible Bulk Supply

Shenchi offers tiered bulk discounts for BSP Stainless Steel Female-Female-Male Y-Type Pipe Tee. Larger order quantities result in better unit pricing. For long-term partners, annual framework agreements are available, ensuring more favorable pricing and priority supply.

Product Advantages Summary

Shenchi’s high-quality BSP Stainless Steel Female-Female-Male Y-Type Pipe Tee integrates multiple advantages:
Y-shaped streamlined structure: 45° angle, low flow resistance, excellent anti-clogging performance
Hybrid thread design: combination of female and male threads enables thread conversion in one fitting
Reduced connection points: replaces “Y-type tee + adapter” combination, lowering leakage risks
Superior materials: stainless steel/brass/carbon steel options, corrosion-resistant and high-pressure resistant
Easy installation: compact structure suitable for space-limited scenarios
Flexible customization: specifications, threads, materials, and surface treatments can all be customized

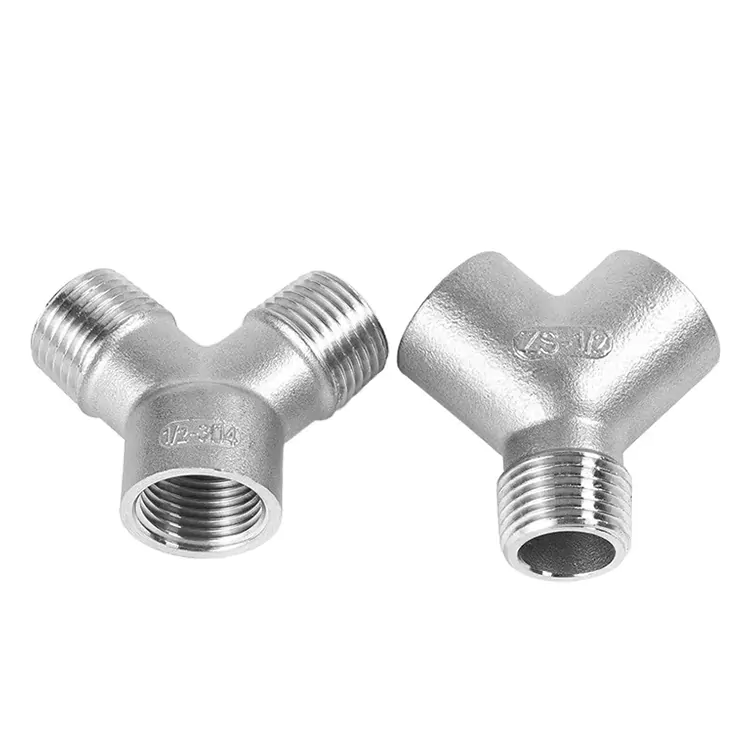

Product Series Extension

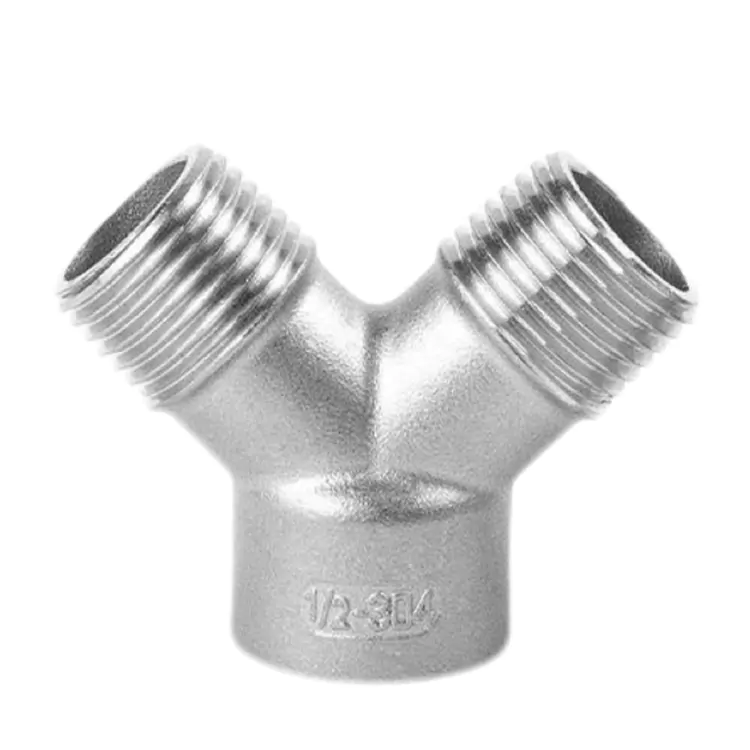

In addition to BSP Stainless Steel Female-Female-Male Y-Type Pipe Tee, Shenchi also produces Female-Male-Male Y-Type Pipe Tee (two male threaded ports and one female threaded port). Together, they form a complete product matrix suitable for different thread combination requirements, providing customers with one-stop procurement convenience.
