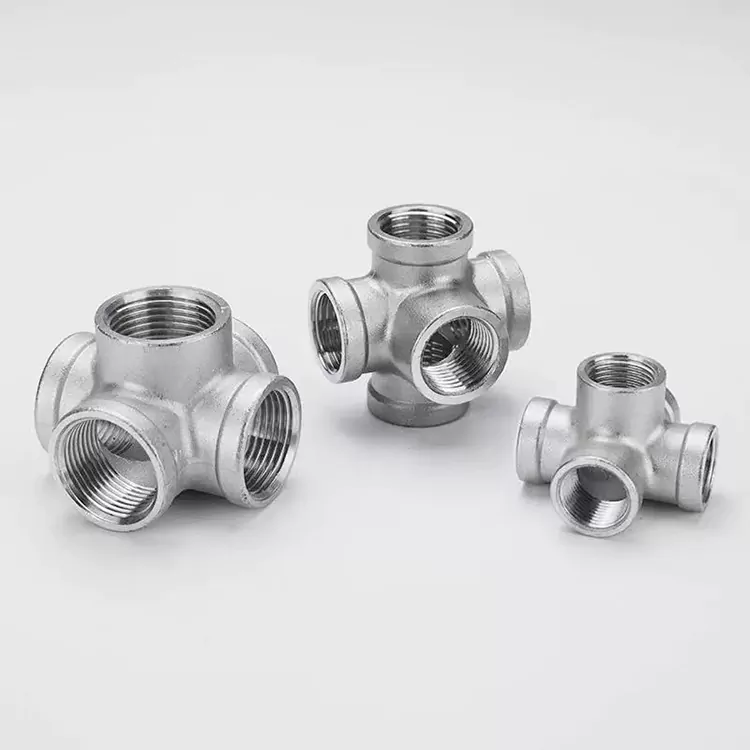

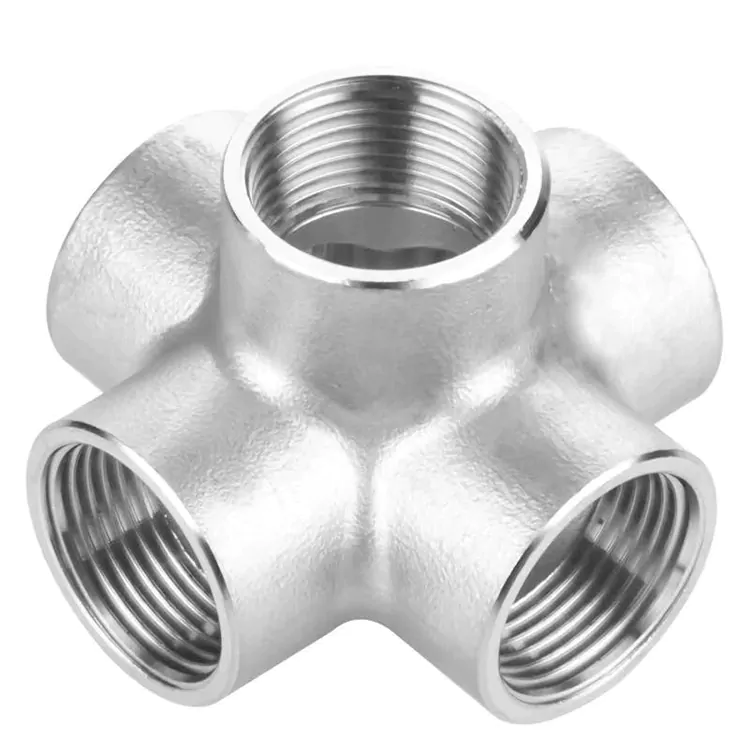

Pipe 3D Five Way Fitting

Shenchi, as a professional manufacturer in China producing Pipe 3D Five Way Fitting, designs this product using precision casting and multi-axis CNC machining technology. Five ports are arranged across X, Y, and Z spatial dimensions to achieve true three-dimensional fluid distribution.

Its core function is to connect a main inlet to the pipeline system and simultaneously branch out four outlets distributed in different planes and directions—left, right, upward, and rearward. Compared with traditional planar systems that require multiple fittings to achieve similar spatial routing, a single 3D five-way fitting can complete complex directional distribution. This significantly reduces welding and threaded connection points, lowering leakage risks and ensuring efficient and reliable fluid distribution in compact and complex piping systems.

Product Parameters

Durability

The durability of Shenchi Pipe 3D Five Way Fitting comes from strict control of materials and manufacturing processes.

Material Assurance:
Made of high-quality brass or 304/316L stainless steel, formed by precision forging or casting in one piece, eliminating stress corrosion risks caused by welded structures.

Structural Strength:
Wall thickness is designed to withstand high-pressure pulses, temperature fluctuations, and vibration fatigue, ensuring long-term stability without deformation or cracking.

Thread Durability:
Threaded areas are reinforced for excellent wear resistance and anti-seizing performance, maintaining precision even after repeated assembly and disassembly.

Surface Protection:
Eco-friendly anti-corrosion treatment provides excellent resistance to salt spray, corrosion, and harsh environments such as outdoor or chemical applications.

Factory Testing:
Each Pipe 3D Five Way Fitting undergoes air-tightness testing and pressure impact testing to ensure full lifecycle reliability.

Core Performance Advantages

The key advantage of Shenchi Pipe 3D Five Way Fitting lies in the perfect combination of “3D spatial distribution” and “structural integration.”

3D Spatial Distribution:
Five ports arranged along X, Y, and Z axes allow multi-directional branching (left, right, upward, rearward) from a single fitting.

High Space Utilization:
Ideal for engine rooms, pipe corridors, and integrated equipment systems where space is limited.

High Installation Efficiency:
Replaces multiple fittings with a single unit, reducing installation time by more than 50%.

High System Reliability:
Fewer connection points significantly reduce leakage risks.

Flexible Configuration:
Supports different port size combinations to meet complex system requirements.

Why Choose Us

Choosing Shenchi means selecting a professional manufacturer with deep expertise in piping connection systems.

Reliable Quality:
From raw material spectral analysis to precision machining and full inspection, a complete traceability system ensures export-grade Pipe 3D Five Way Fitting quality.

Stable Delivery:
Standard models are stocked for bulk orders, while customized versions can be produced quickly with reliable lead times.

Competitive Pricing:
Factory-scale production and cost optimization allow us to offer cost-effective procurement solutions.

Strong Customization Capability:
Supports ODM/OEM services, including special thread standards and non-standard port configurations.

Full-Service Support:
From drawings and samples to mass production, our technical team ensures seamless integration into your system.

Choosing Shenchi means choosing a long-term, reliable manufacturing partner.
