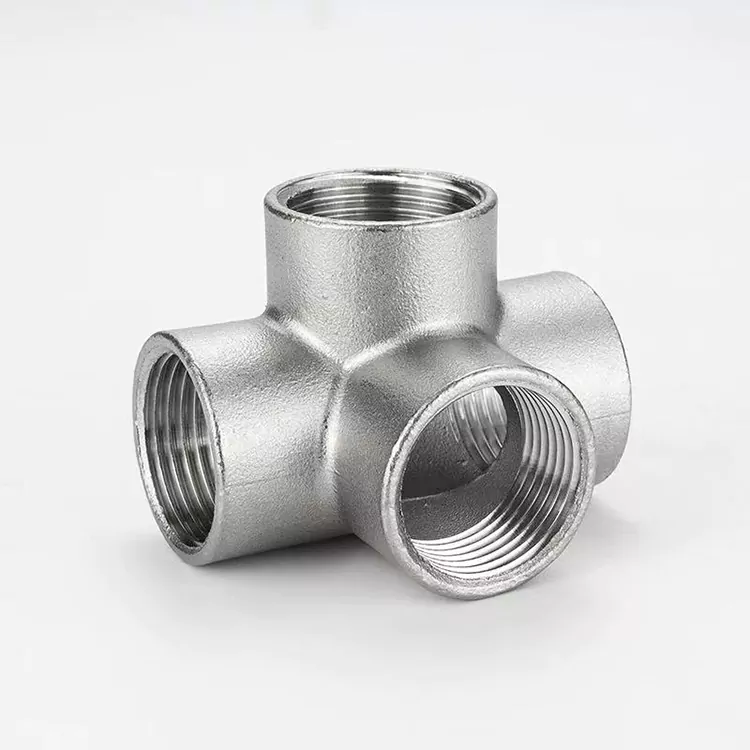

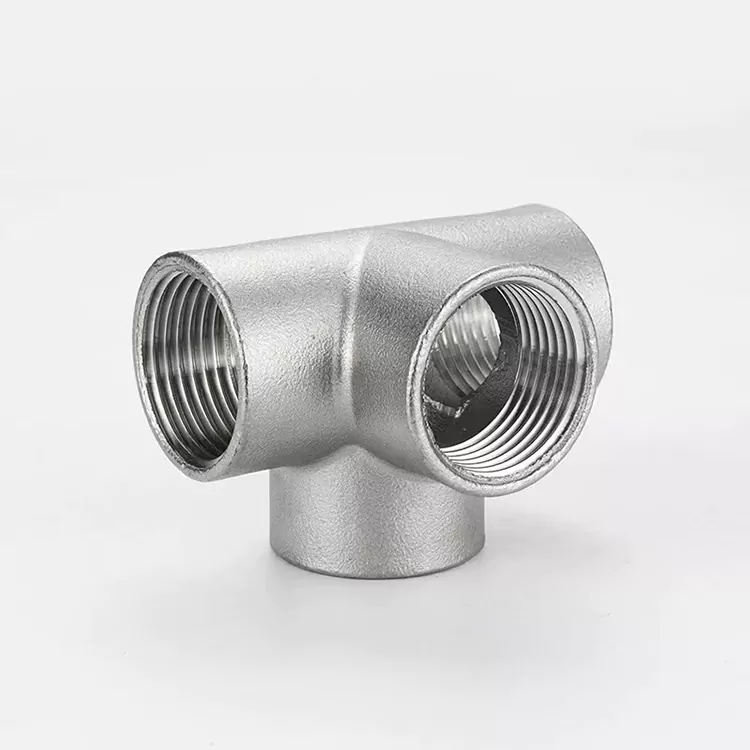

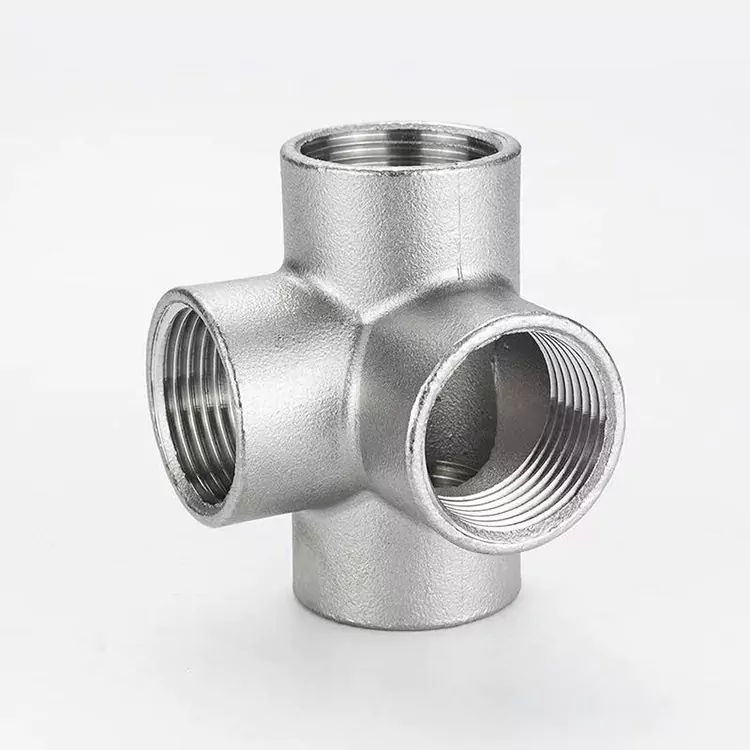

Pipe Connection 3D Tee

What is Pipe Connection 3D Cross Pipe Fitting used for?

Shenchi factory’s high-performance Pipe Connection 3D Tee is mainly used for vertical cross-connections of pipelines in three-dimensional space, enabling fluid distribution and merging in four different directions. Its key function is to connect horizontal and vertical pipelines simultaneously at a single node, greatly saving installation space and making it ideal for complex piping systems.

It adopts precision sealing and anti-detachment design, offering high strength, corrosion resistance, and easy installation. It effectively enhances pipeline layout compactness and overall system stability.



Product Parameters





Product Name: Pipe Connection 3D Tee	Sizes: (1/8"–4") DN6–DN100
Nominal Pressure: PN16	Body Material: Brass, SUS304, SUS316L
Standards: ANSI, BS, DIN, ISO, JIS	Threads: NPT, BSP, BSPT, DIN, etc.
Internal Metal Material: Brass, SUS304, SUS316L	Medium Temperature: High, Low, Medium, Ambient
Operation Mode: Manual	Seals: EPDM
Connection Type: Threaded	Suitable for: Water, Air, Gas, Oil, Liquids, etc.
Place of Origin: China	Samples: Make samples for free



Product Features

Shenchi Pipe Connection 3D Tee is a high-performance connector designed for complex pipeline systems, with the following core features:

3D Spatial Structure:

Supports four-directional pipeline connections (up, down, left, right, front, back), suitable for multi-dimensional pipeline layouts.

High-Strength Material:

Made of high-quality stainless steel, offering excellent pressure and impact resistance.

Precision Sealing Design:

Built-in double sealing ring structure ensures reliable sealing even under high pressure and high temperature conditions.

Easy Installation:

Plug-in structure with anti-detachment clips allows installation without specialized tools, greatly improving construction efficiency.

Corrosion & Aging Resistance:

Materials pass salt spray and UV aging tests, making them suitable for outdoor, humid, and corrosive environments.

Product Advantages

Compared with traditional planar cross fittings or standard tees, Shenchi Pipe Connection 3D Tee offers significant advantages in engineering applications:

Space Saving:

Enables multi-directional connections in limited spaces, reducing the number of fittings and optimizing pipeline layouts.

Improved System Stability:

Integrated one-piece structure minimizes leakage risks caused by multi-joint assemblies, enhancing overall system reliability.

Wide Application Range:

The Pipe Connection 3D Tee is widely used in agricultural irrigation, municipal pipeline networks, industrial fluid transportation, and HVAC systems.

Customization Support:

ODM/OEM services available, including customized interface specifications, materials, and colors.

Application Scenarios

Shenchi Pipe Connection 3D Tee is particularly suitable for:

Modern Agricultural Irrigation Systems:
Enables multi-directional branching for drip and sprinkler irrigation, improving water efficiency.

Building Water Supply & Drainage Systems:
Allows three-dimensional cross connections at pipeline junctions, simplifying routing.

Industrial Fluid Transport:
Suitable for various media (water, oil, gas), meeting complex process pipeline layout requirements.



Why Choose Shenchi

As a manufacturer specializing in high-performance pipeline connection systems, Shenchi is committed to delivering premium Pipe Connection 3D Tee. We have a complete system covering R&D, mold manufacturing, injection molding, and quality inspection, ensuring every product meets international standards.

Ready Stock:
Common specifications are available for immediate shipment, meeting urgent project needs.

Competitive Pricing:
With large-scale production and efficient supply chain management, Shenchi offers cost-effective Pipe Connection 3D Cross Pipe Fitting with excellent value.

Global Export:
As a representative brand of China-made 3D cross pipe fittings, Shenchi products are exported to Europe, the United States, Southeast Asia, the Middle East, and other regions, earning strong trust from international customers.
