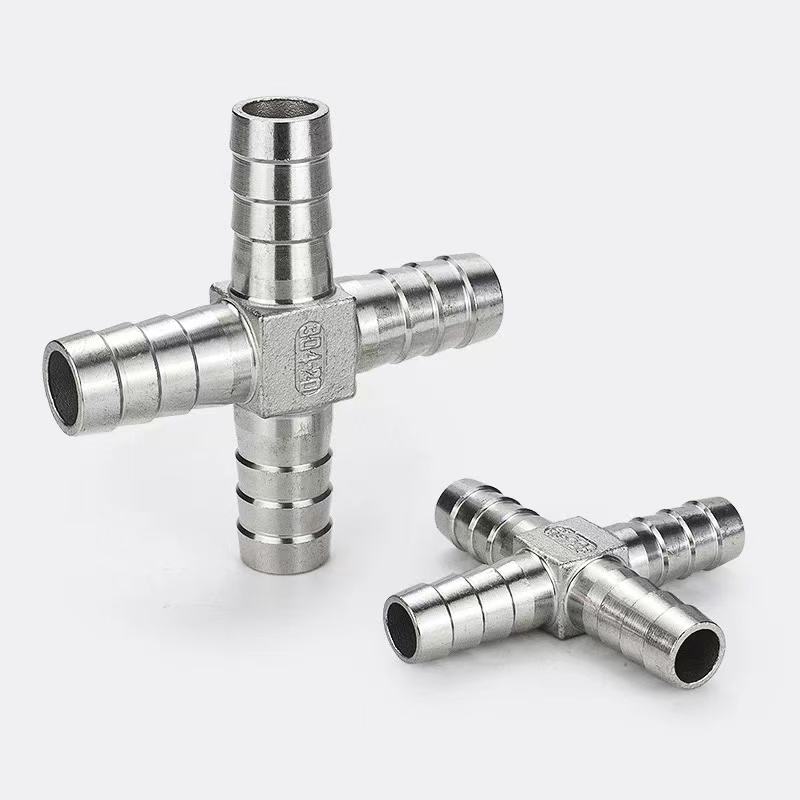

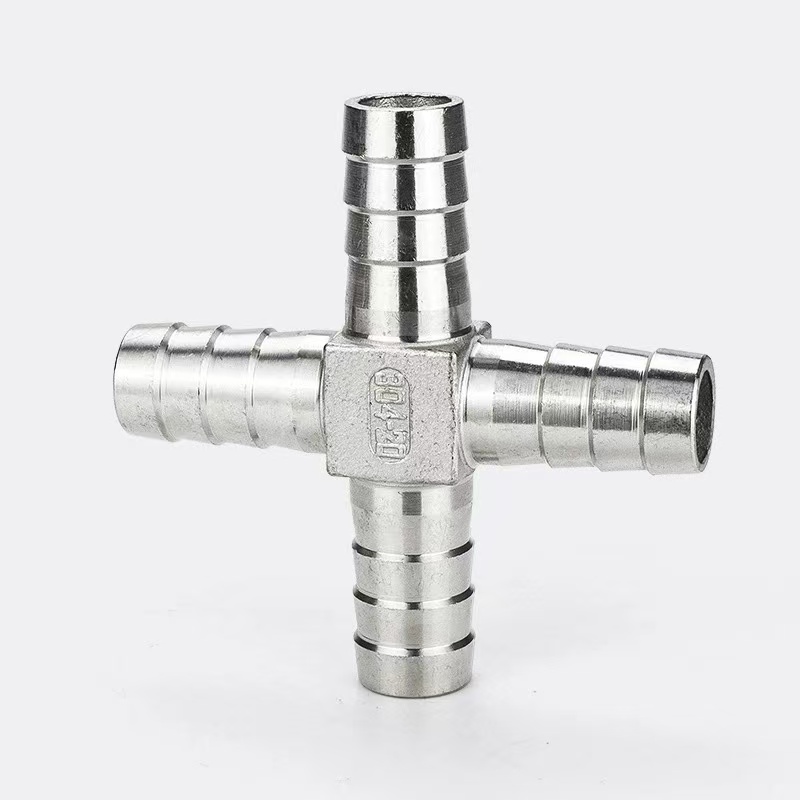

Cross-Type Pagoda Water Pipe Fitting

As a professional manufacturer of pipe fittings in China, Shenchi Factory offers the Cross-Type Pagoda Water Pipe Fitting—a four-way diversion component. Its main body features four cross-shaped "pagoda" (barbed) ports, engineered to evenly distribute a single fluid input into three branch lines or to consolidate multiple inputs into one. Constructed from brass, 304 stainless steel, or 316L stainless steel, the product exhibits exceptional corrosion resistance and is suitable for applications in water treatment, pneumatic systems, agricultural irrigation, and medical equipment. The barbed ridges feature an anti-slip groove design; when used in conjunction with hose clamps, they ensure a secure connection, facilitate easy installation, and enable efficient "one-in, three-out" fluid diversion.

Product Specifications

Core Description

The Cross-Type Pagoda Water Pipe Fitting is a four-way fluid diversion component. Its main body features four pagoda-style barbed ports arranged in a cross configuration, designed to evenly distribute a single fluid stream into three branch lines, or to consolidate multiple fluid streams into a single channel.

1. Cross-Shaped Four-Way Structure: The four ports are arranged orthogonally at 90-degree angles, comprising one inlet and three outlets. The input and output configuration can be flexibly adjusted based on the installation orientation, enabling various connection modes such as one-in-three-out or three-in-one-out.

2. Pagoda-Style Barbed Design: Each port features a progressively tapered, multi-stepped barbed profile. When a flexible hose is inserted, these barbs create multiple sealing rings against the inner wall of the hose; when secured with a stainless steel hose clamp, the resulting pull-off resistance is significantly higher than that of standard straight-insert fittings.

3. Efficient Diversion Capability: Compared to using multiple T-fittings in series, the cross-type structure performs the one-in-three-out diversion in a single unit. This reduces the total number of fittings and potential leak points, resulting in a cleaner and more streamlined piping layout.

High Adaptability

The Shenchi Cross-Type Pagoda Water Pipe Fitting demonstrates exceptional adaptability, capable of meeting the pipeline connection requirements of diverse scenarios and specifications:

Specific Dimensions of Adaptability:

Soft Hose Compatibility: The barbed pagoda design is compatible with a wide variety of soft hose materials—including PU, PE, PVC, silicone, nylon, and rubber—making it widely applicable in fields such as water treatment, pneumatics, medical technology, and chemical processing.

Size and Specification Compatibility: The pagoda's outer diameter covers seven common specifications—4mm, 6mm, 8mm, 10mm, 12mm, 16mm, and 20mm—allowing it to mate with various soft hoses having inner diameters ranging from 3mm to 19mm.

Installation Orientation Flexibility: The cross-shaped four-way structure supports multiple input/output configurations—such as one-in/three-out, three-in/one-out, and two-in/two-out—allowing for flexible adjustment based on the actual pipeline layout.

Customization Capabilities: We offer ODM and OEM customization services, enabling us to modify the pagoda barb profile, barb count, number of ports, surface finish, and laser markings according to client drawings to meet non-standard requirements.

Interface Expansion: It can be combined with other products in the same series—such as L-type, T-type, and panel-mount pagoda fittings—to create comprehensive solutions for flow splitting, directional changes, and panel-through connections.
