Integrated Manifold for Floor Heating

Advantages of Integrated Manifold for Floor Heating

The high-performance Integrated Manifold for Floor Heating from Shenchi, a professional manufacturer in China, is available in both brass and stainless steel versions.

· Brass Version: Made from high-grade precision forging, offering excellent pressure resistance and corrosion resistance.

· Stainless Steel Version: One-piece formed, providing stronger resistance to stress corrosion, suitable for high-demand environments.

Both versions adopt an integrated forging process with no welding seams, completely eliminating leakage risks. Combined with high-precision flow meters and electric actuator interfaces, the system enables accurate temperature control.

Product Parameters

System Configuration Guide (How Many Loops Do You Need?)

Shenchi helps you match the right configuration. The Integrated Manifold for Floor Heating supports 2 to 9 loops, covering a wide range of residential and commercial needs.

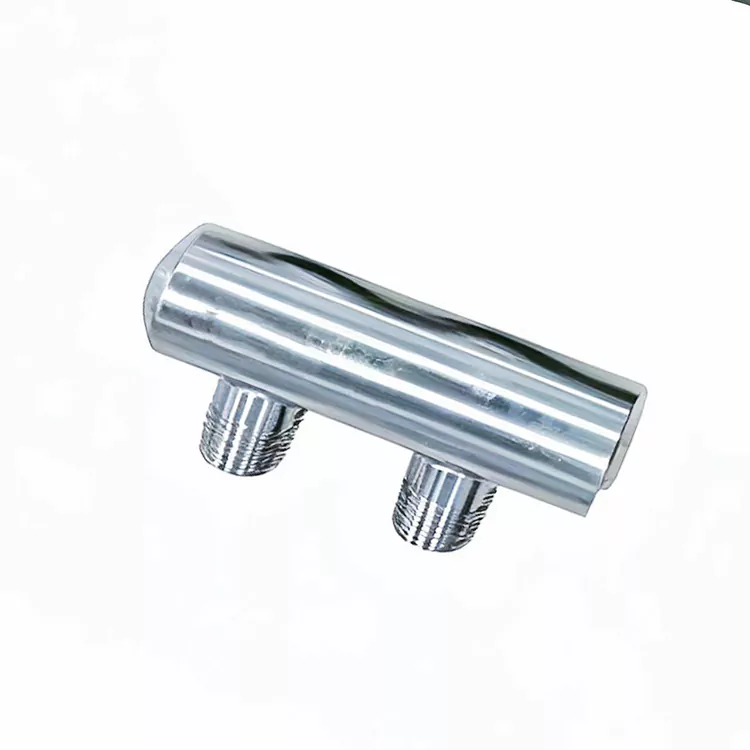

· 2–4 loops: Small apartments, single rooms, studios

· 5–7 loops: Standard family homes with multiple rooms

· 8–9 loops: Large apartments, villas, duplexes, and large heating areas

With full specification coverage from 2 to 9 loops, the system ensures flexible application for different housing sizes.

Application Scenarios (2–9 Loops Coverage)

· 2–4 loops: Apartments, small shops, studios, clinics, community rooms

· 5–7 loops: Hotels, restaurants, offices, training centers, gyms, maternity centers

· 8–9 loops: Shopping malls, hospitals, schools, nursing homes, exhibition halls, industrial office areas

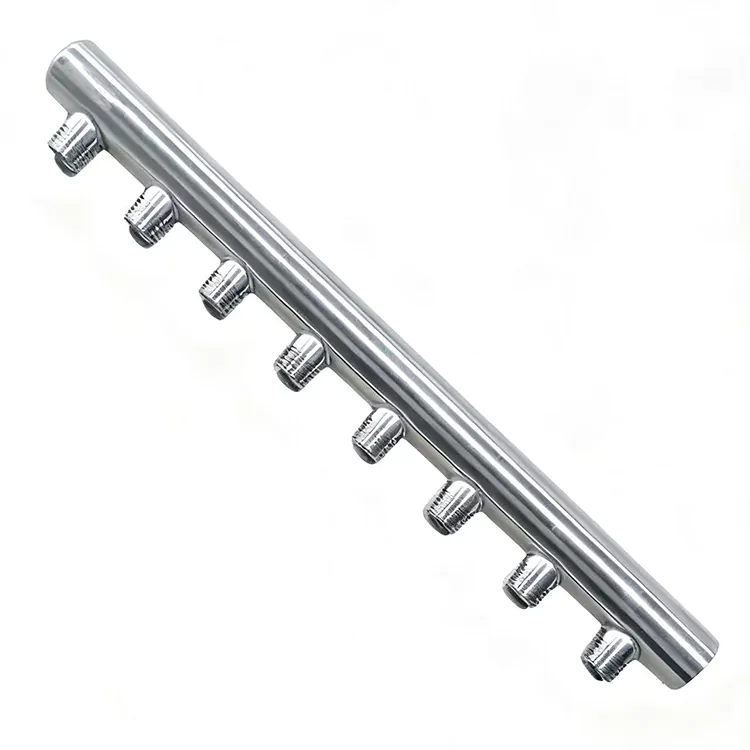

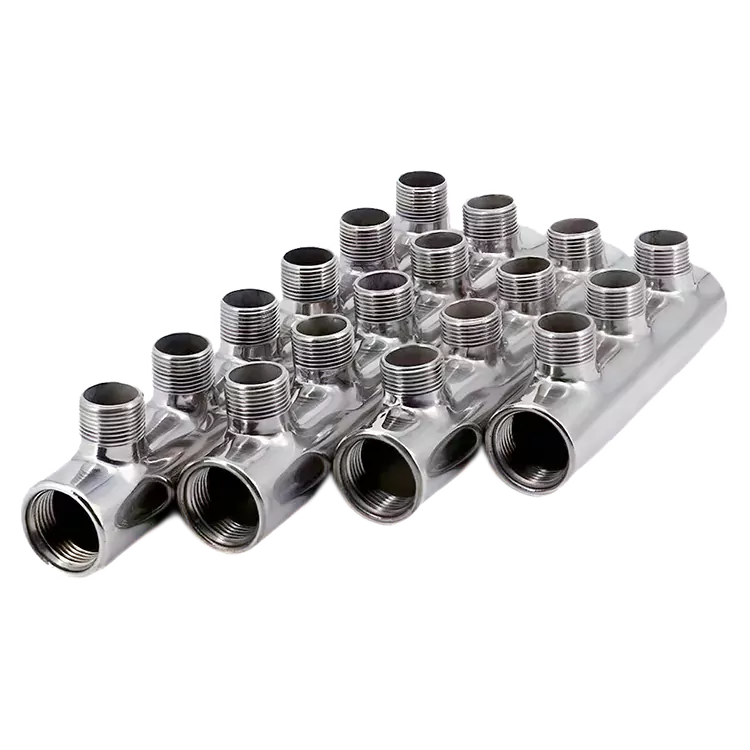

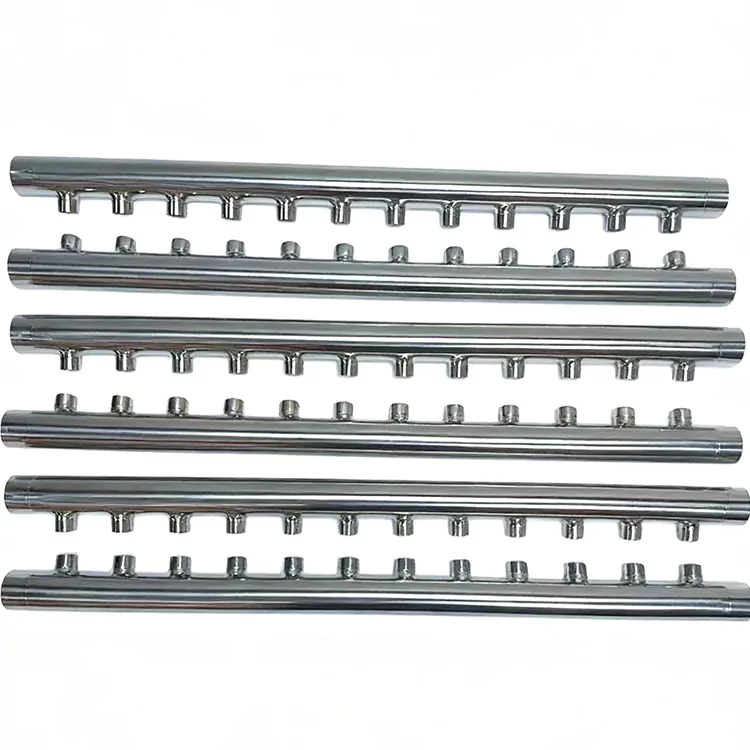

Core Structure of Integrated Manifold for Floor Heating

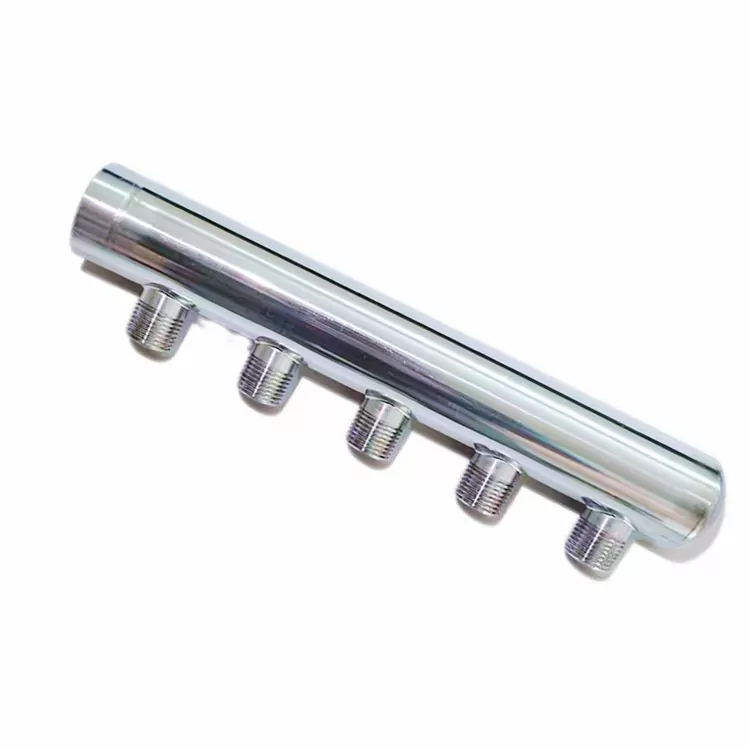

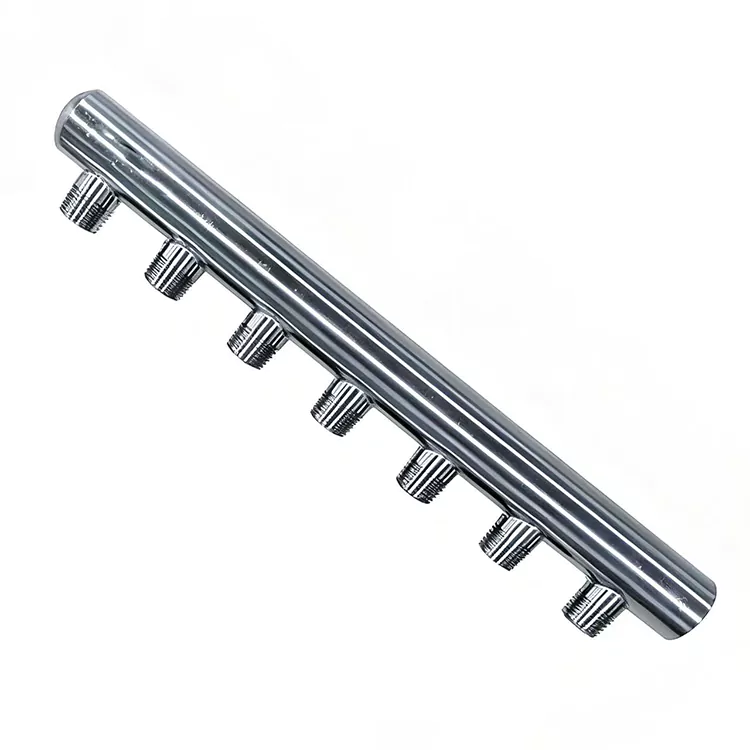

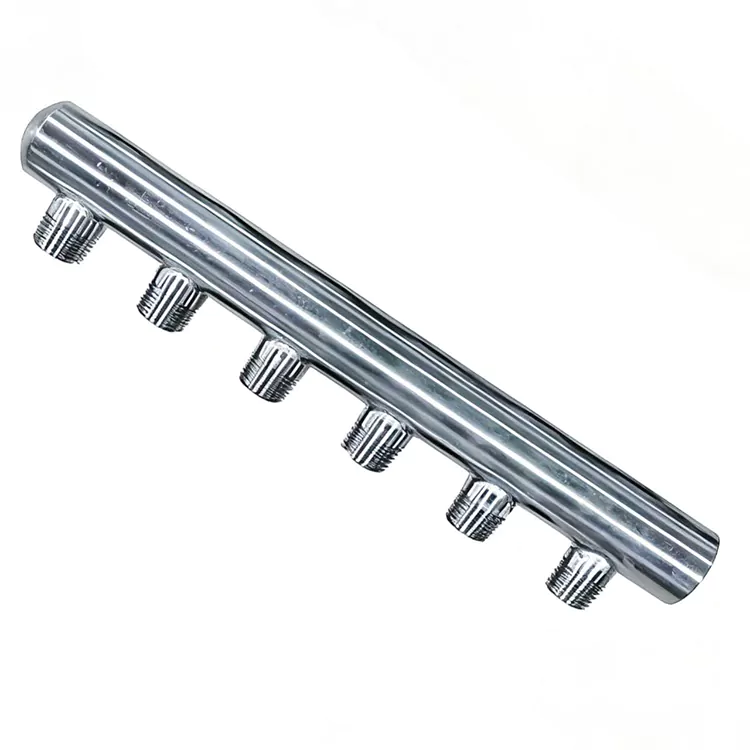

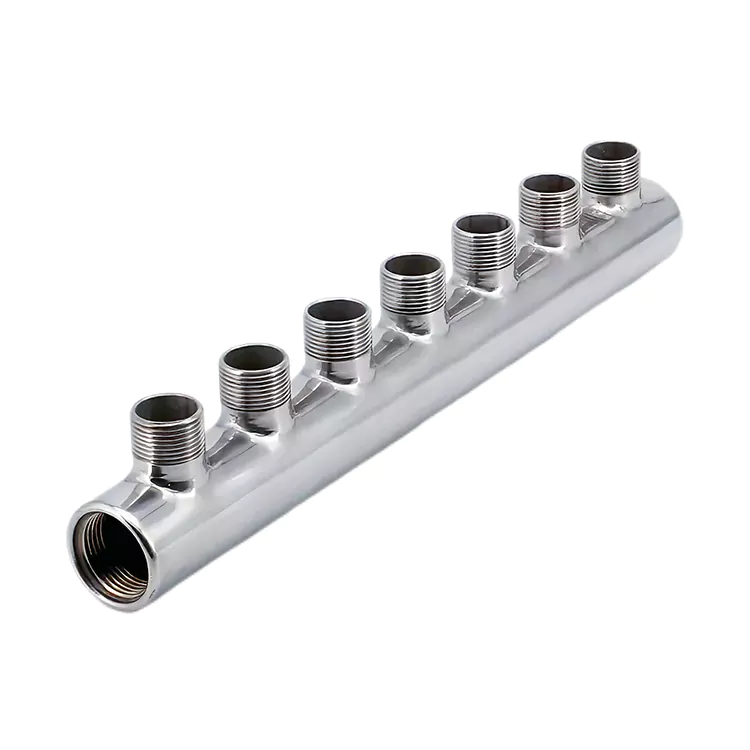

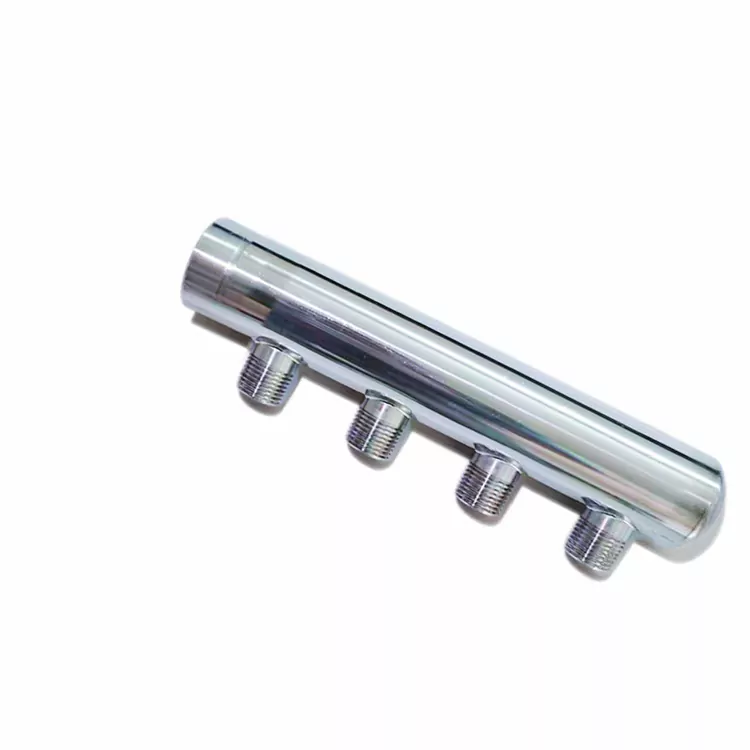

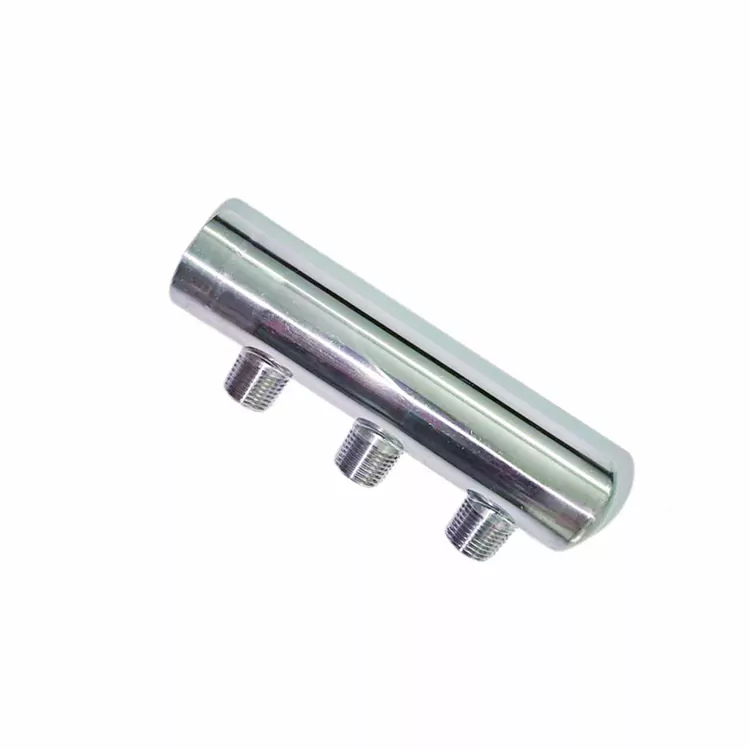

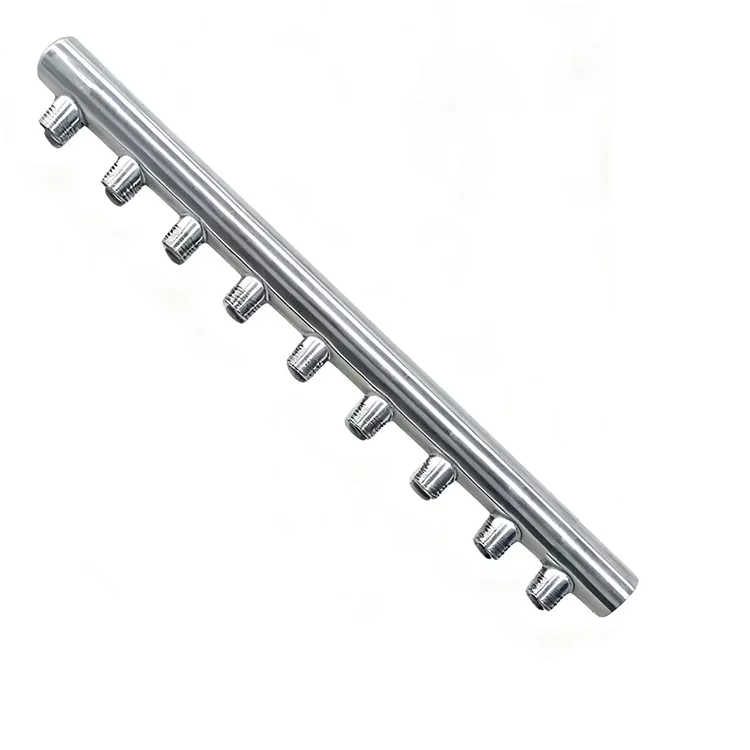

The ShenchiIntegrated Manifold for Floor Heating adopts a structure where the main pipe is welded into a single body, and branch outlets are created through precision drilling and fitted with threaded connectors.

· The main pipeline is precision welded to form a strong structural frame.

· Branch outlets are drilled and assembled with dedicated connectors.

· Threaded connections ensure firm sealing and reliable performance.

This structure balances manufacturing efficiency and product strength, making it ideal for bulk customization and engineering applications.

Material options include brass, 304 stainless steel, and 316L stainless steel:

· Brass: Suitable for standard residential systems

· 304 stainless steel: Suitable for general commercial environments

· 316L stainless steel: Strong resistance to chloride corrosion, ideal for coastal or complex water conditions

Shenchi fully supports OEM/ODM customization, including loop numbers, materials, port specifications, and surface treatments.

Corrosion Resistance Performance

Corrosion resistance is critical for long-term stable operation of theIntegrated Manifold for Floor Heating.

· Brass: Nickel-plated surface, anti-oxidation and anti-dezincification, ideal for standard water conditions

· 304 Stainless Steel: Good resistance to oxidation and corrosion, suitable for moderately hard water environments

· 316L Stainless Steel: Contains molybdenum for superior chloride resistance, ideal for coastal and industrial environments

All materials undergo pressure and sealing tests to ensure long-term stability under alternating hot and cold water conditions, preventing leakage caused by corrosion or seal failure.
