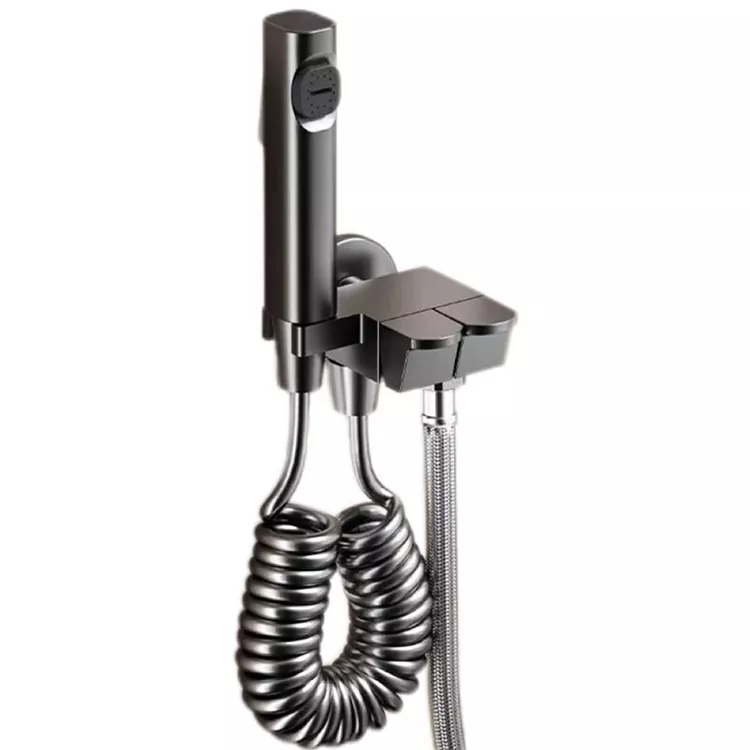

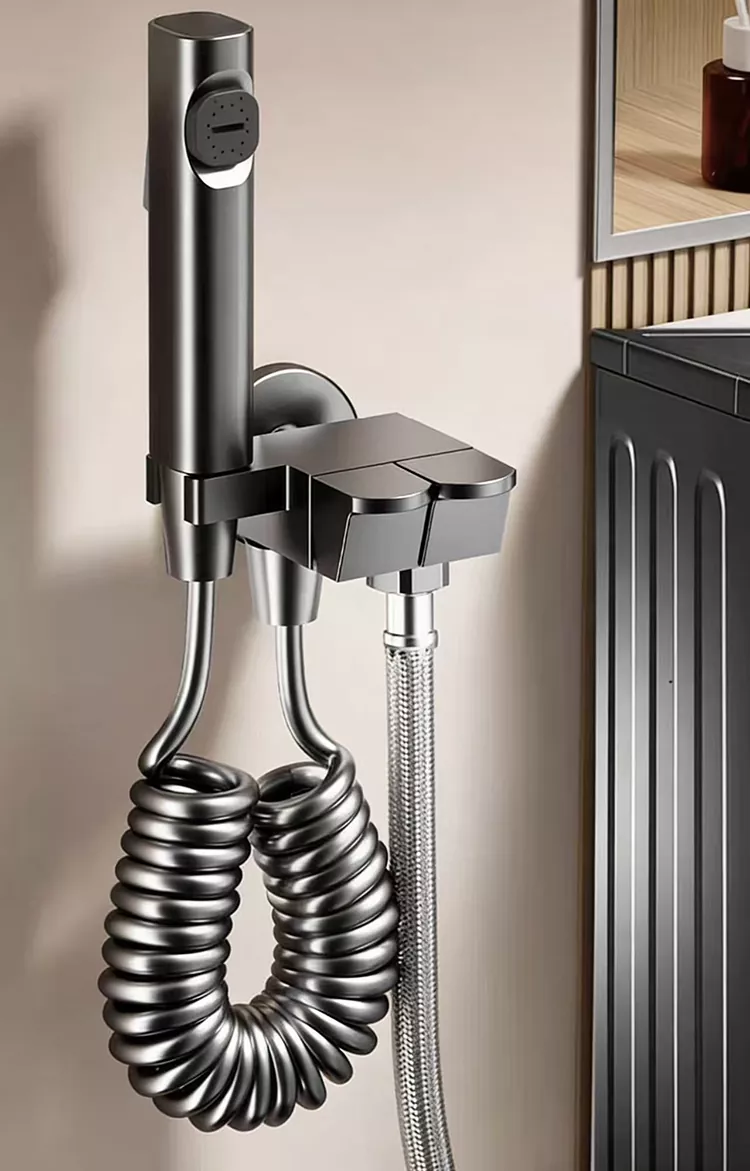

Piano-Style Push-Button Toilet Bidet Sprayer Set

What are the highlights of the Piano-Style Push-Button Toilet Bidet Sprayer Set?

The highlight of the Shenchi Piano-Style Push-Button Toilet Bidet Sprayer Set is its dual-outlet design and piano-key controls. One inlet can connect to both the spray gun and the toilet or washing machine simultaneously, eliminating the need for a separate diverter. The large, piano-key style buttons offer a crisp tactile feedback and are easy to press even with wet hands. The powerful high-pressure water flow, combined with the explosion-proof hose, easily rinses toilet bowl interiors, hard-to-reach floor corners, and mops, making bathroom cleaning elegant and efficient.

Product Parameters

Will It Fit Your Existing Toilet Angle Valve?

The installation convenience of the Piano-Style Push-Button Toilet Bidet Sprayer Set depends largely on how well it integrates with existing household plumbing systems. From the beginning of development, Shenchi prioritized compatibility to ensure suitability for most home environments.

Standard Connections: Ready for Quick Installation

Water Inlet Connection:

The inlet of the diverter angle valve uses a standard G1/2 (1/2 inch) female thread, compatible with most wall water outlets. Whether your existing angle valve is brass, stainless steel, or plastic, direct installation is possible as long as the outlet has a G1/2 male thread.

Water Outlet Connection:

The two outlets of the diverter valve use standard G1/2 male threads, designed to connect separately to the toilet inlet hose and the sprayer hose. No adapters or pipe modifications are required.

Hose Connection:

Both ends of the sprayer hose feature standard G1/2 female threads. One end connects to the diverter valve and the other to the sprayer body, ensuring compatibility with approximately 99% of common market fittings.

Installation Solutions for Three Typical Scenarios

Scenario 1:

Only one wall water outlet is available and a standard angle valve is already installed for the toilet.

Compatibility: Fully Compatible

Installation Method: Replace the original angle valve with Shenchi's one-inlet two-outlet diverter valve. Connect the existing toilet hose to one outlet and the sprayer hose to the other. No wall modifications are needed.

Scenario 2:

Only one wall water outlet is available and no angle valve has been installed.

Compatibility: Fully Compatible

Installation Method: Install Shenchi’s diverter angle valve directly onto the wall outlet, then connect the toilet and sprayer separately.

Scenario 3:

Two wall outlets are available, with one already used for the toilet and another remaining unused.

Compatibility: Compatible (Optional Simplified Version)

Installation Method: Choose the simplified package without a diverter valve and connect the sprayer hose directly to the unused outlet with a standard angle valve or straight valve.

If an intelligent toilet seat already shares the same angle valve with the toilet system, users may wonder whether a sprayer can also be added. Shenchi’s standard version features a one-inlet two-outlet design. For users requiring simultaneous connection of a toilet, smart toilet seat, and sprayer, Shenchi also offers customized one-inlet three-outlet ODM/OEM solutions.
