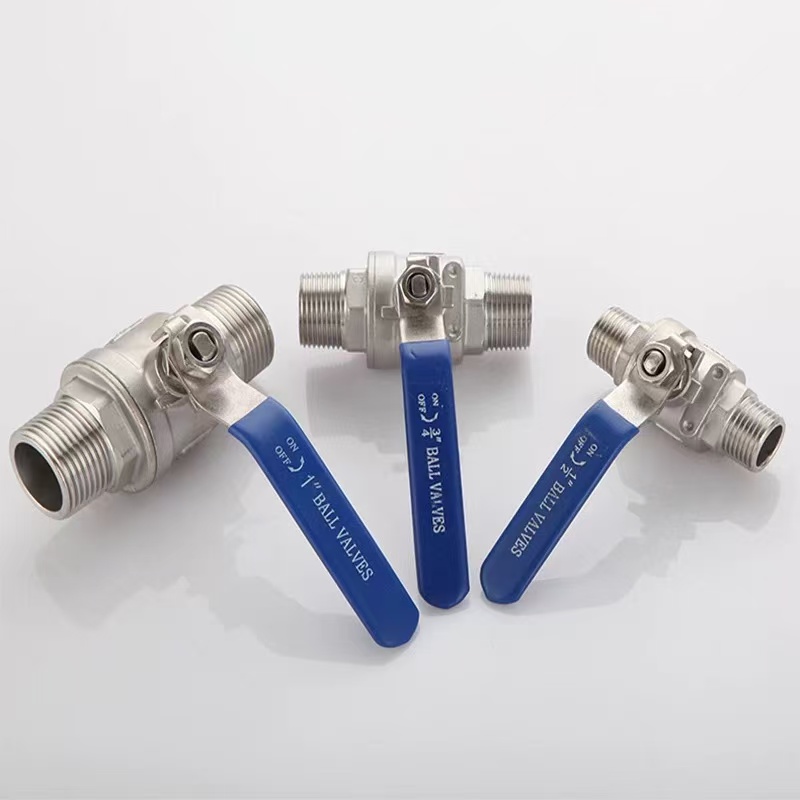

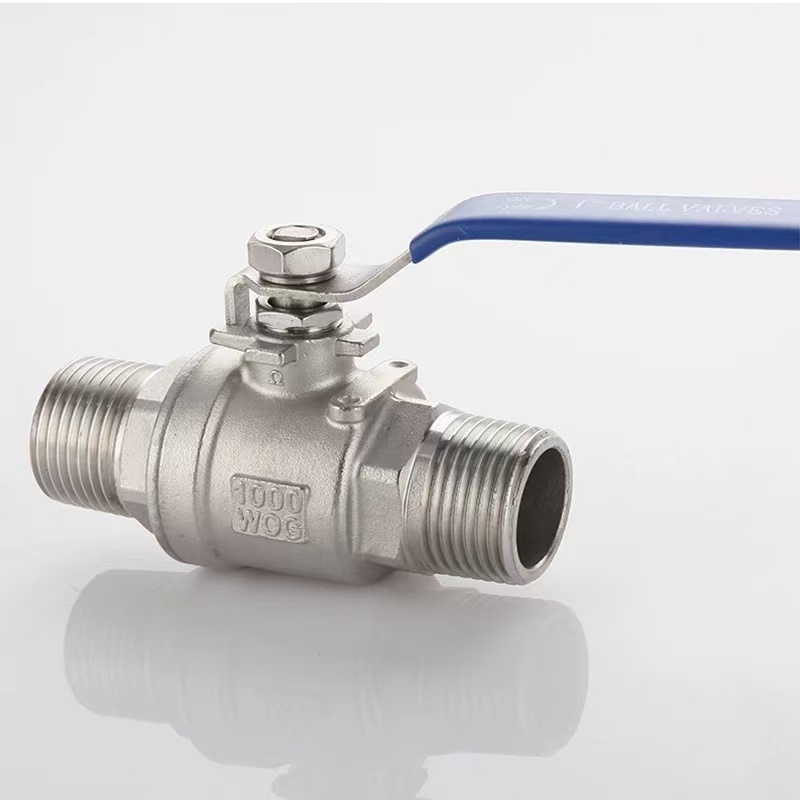

Two-piece double male thread ball valve

Shenchi Science Popularization: What exactly is a high-quality two-piece double male-thread ball valve?

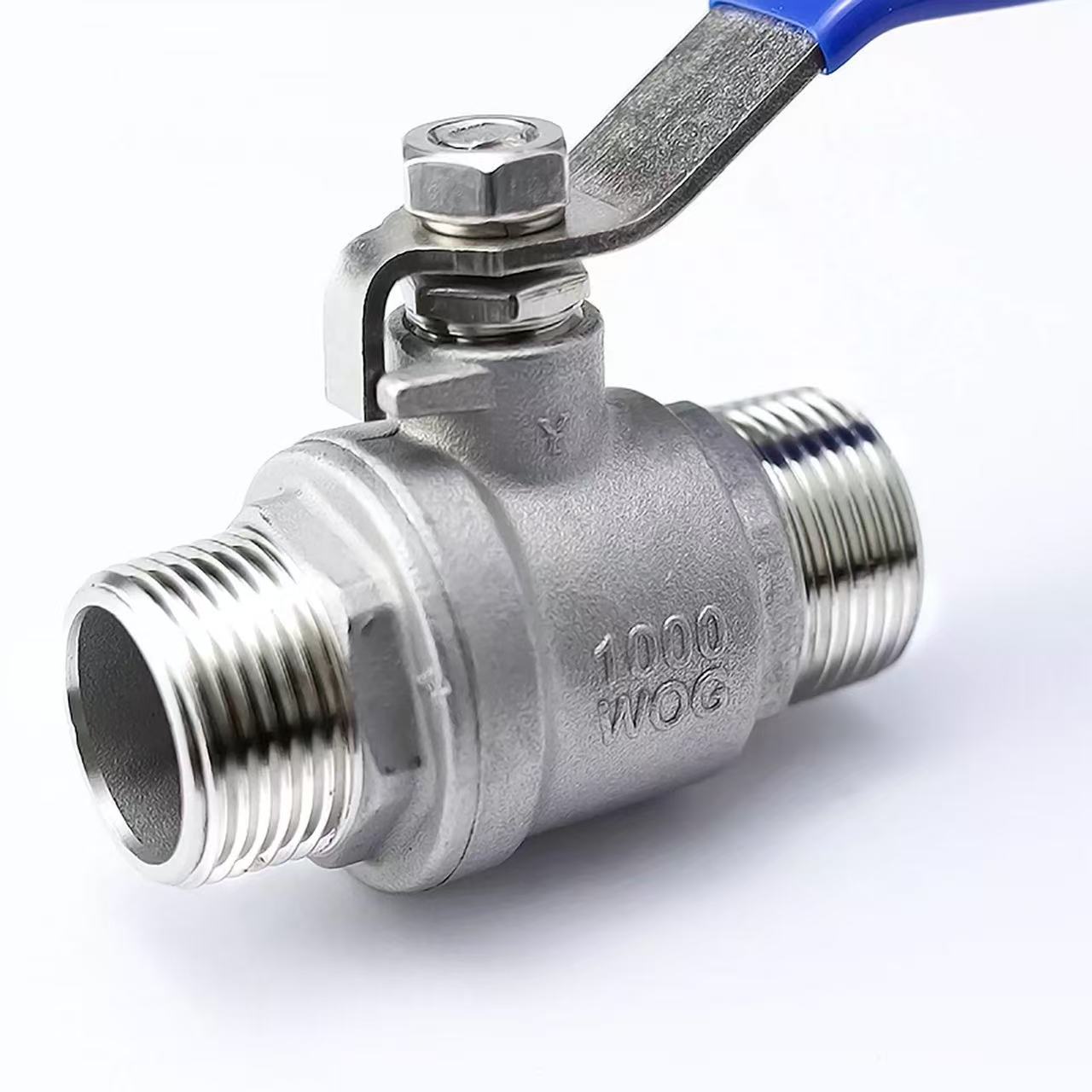

A two-piece double external thread ball valve is a ball valve with male threads on both ends, assembled from two body components. Shenchi’s version of this valve offers body materials in brass, SUS304, or SUS316L, with internal metal matching the body to eliminate flow path corrosion risk. It uses EPDM seals and manual operation, suitable for water, air, oil, gas and similar media. A “high-quality two-piece double external thread ball valve” is defined by high thread precision, low operating torque, long seal life, and direct connection to female-threaded ports without extra adapters.

Product Parameters

Product Name: Two-Piece Double External Thread Ball Valve	Specifications: (1/8"-4") DN6-DN100
Nominal Pressure: PN16	Body Material: Brass, SUS304, SUS316L
Standards: ANSI, BS, DIN, ISO, JIS	Threads: NPT, BSP, BSPT, DIN, etc.
ternal Metal Material: Brass, SUS304, SUS316L	Medium Temperature: High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Operation Method: Manual	Seal: EPDM
Connection Method: Threaded Connection	Applications: Water, Air, Gas, Oil, Liquids, etc.
Origin: China	Sample: Samples available

Pre-installation Inspection and Thread Connection Specifications for Shenchi Two-Piece Double External Thread Ball Valve

Shenchi, a two-piece double external thread ball valve supplier from China, recommends checking that both external threads on the valve body are undamaged and cleanly matched with female pipe threads before installation. Apply moderate PTFE tape evenly in the thread direction for 2-3 wraps. Shenchi’s premium two-piece double external thread ball valve features wrench flats at the thread roots. Use an open-end wrench on these flats during installation; never rotate the middle valve body section to avoid misaligning the internal ball core.

Key Points for Seal Positioning and Valve Body Assembly Torque Control

Key components of a two-piece double external thread ball valve include the two body halves, center ball core, stem, and EPDM seals. In Shenchi’s design, the two bodies connect via center threads. Ensure the sealing gasket (between the body halves) is centered without skew. Hand-tighten until contact, then use a tool for an additional 1/4 turn. Excessive torque will deform EPDM seals and cause failure. An affordable two-piece double external thread ball valve should never compromise sealing quality; proper torque control directly affects valve lifespan.

On-site Adjustment Method for Valve Stem Sealing and Switch Limiting Mechanism

Shenchi’s two-piece double external thread ball valve features an EPDM O-ring seal at the stem. After installation, manually cycle the valve twice to check for any leakage at the stem root. If slight leakage occurs, gently tighten the stem packing nut (no more than 1/8 turn). Also note the handle stop limits: handle parallel to the pipe indicates open; perpendicular indicates closed. A premium two-piece double external thread ball valve includes mechanical stops at extreme positions. Never force beyond these stops, or damage to the internal ball core and sealing surfaces may occu

Common Installation Error Avoidance and On-Site Sealing Test Procedures

When installing Shenchi’s two-piece double external thread ball valve, avoid: over-wrapping threads with sealant causing debris into the valve cavity, using pipe wrenches directly on the valve body surface, or failing to clean pipe debris before installation. Correct procedure: perform a pressure test after installation, slowly open the valve, apply soapy water to all threaded connections and body joints, and observe for bubbles. A premium two-piece double external thread ball valve should maintain no pressure drop for five minutes at PN16 test pressure. After testing, leave the valve half-open to prevent long-term seal compression on one side.
