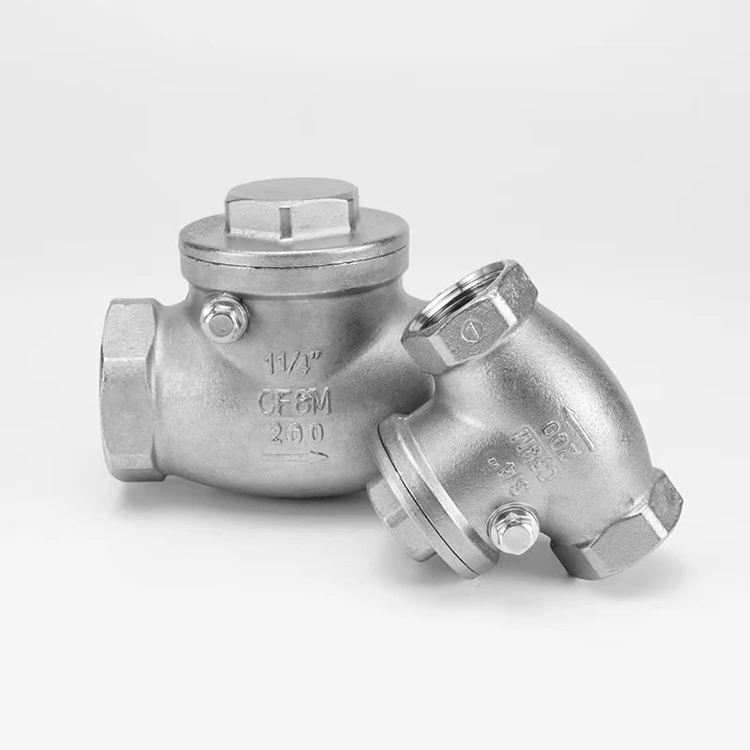

H14 Backflow Prevention Check Valve

What is an H14 Backflow Prevention Check Valve?

Shenchi's high-performance H14 Backflow Prevention Check Valve is an automatic backflow prevention valve that relies on the forward thrust of the medium to drive the valve disc to rotate around the pivot axis. It is widely used in industrial pipeline applications such as chemical, water supply and drainage, HVAC, and power plants. The valve body is mostly made of 304/316L stainless steel, which is corrosion-resistant and pressure-resistant, adapting to different media conditions; under reverse media pressure, the valve disc closes quickly, providing excellent sealing performance and effectively preventing media backflow, reducing the risk of water hammer impact in the pipeline. Its compact structure and flexible installation methods allow for horizontal or vertical installation (for vertical installation, the medium must flow from bottom to top). Maintenance does not require removing the entire pipe; only the valve disc and seals need to be inspected, making it a commonly used protective component for the stable operation of industrial fluid systems.

Product Parameters

Product Features

1. As a professional H14 Backflow Prevention Check Valve manufacturer, Shenchi specializes in horizontal check valves (H14). Our products comply with national standards for H14 backflow prevention check valves and are a preferred source for H14 Backflow Prevention Check Valves made in China.

2. Featuring a swing-type structure design, the valve disc is driven open by forward fluid pressure and automatically closes in the reverse direction, providing precise, leak-free backflow prevention and effectively resisting pipeline water hammer.

3. The valve body is corrosion-resistant and pressure-resistant, suitable for various media conditions. It boasts a compact structure, stable operation, and is positioned as a cost-effective H14 Backflow Prevention Check Valve, meeting the needs of industrial bulk purchasing.

Application Areas

Suitable for chemical fluid transportation, municipal water supply and drainage, HVAC hot water circulation, power plant auxiliary pipelines, petrochemicals, and other industrial applications. It can be used in pipeline systems for clean water, oil, and weakly corrosive media.

The horizontal check valve H14 offers flexible installation, adapting to different pipeline layouts, effectively preventing media backflow and ensuring the continuous and stable operation of the pipeline system. It is suitable for both civil buildings and demanding heavy industrial conditions, serving as a core protective component in fluid control.

Core Structure and Design Highlights

1.  Adopting a swing-type core structure, the valve disc rotates around a pivot pin for opening and closing, providing sensitive response and low flow resistance, without affecting media transport efficiency.

2. The H14 Backflow Prevention Check Valve has strong installation adaptability, with clear media flow direction markings, and can be directly connected to standard pipelines.

3. The sealing surface adopts a hard seal design, combined with a precise valve seat fitting structure, improving sealing reliability and service life. This addresses the shortcomings of leakage and slow opening/closing in ordinary check valves, meeting the safety requirements of industrial pipeline operation.

Key Component Configuration:

The valve body of the Shenchi H14 Backflow Prevention Check Valve is made of 304/316L stainless steel, offering corrosion and wear resistance, and is suitable for various media and pressure conditions; the valve disc is made of wear-resistant alloy material, precision machined for excellent sealing performance; the pivot pin is made of high-strength stainless steel, combined with a lubrication structure to reduce wear during opening and closing; the seals are made of temperature and corrosion-resistant materials as standard, suitable for operating conditions from -20℃ to 180℃, ensuring long-term stable operation.

Procurement and Service Advantages

Shenchi’s H14 Backflow Prevention Check Valve is readily available in sufficient stock, with tiered discounts for bulk purchases. Combined with the low price of the H14 backflow prevention check valve, this significantly reduces procurement costs. Customization services are available, allowing for adjustments to material, bore size, and sealing type to suit non-standard operating conditions. Free technical selection solutions are provided. Comprehensive after-sales service is guaranteed, with each product undergoing pressure and sealing tests. Remote installation guidance and troubleshooting services are also provided.

Installation and Maintenance Precautions

Installation points: When installing horizontally, ensure the valve body is level, the medium flow direction matches the markings, and the connection points are properly sealed to prevent impurities from entering the valve body and scratching the sealing surface.

Maintenance points: Regularly check the valve disc sealing and pivot pin flexibility. If leakage occurs, tighten the packing gland. If wear is severe, replace the seals promptly. The horizontal H14 check valve is easy to disassemble and repair, eliminating the need to remove the entire pipe, thus reducing maintenance costs.
