Industrial Heavy-Duty Female Elbow

Female & Male Thread Elbow Solutions

Shenchi provides high-quality Industrial Heavy-Duty Female Elbow and matching male-thread elbow fittings to meet different pipeline connection requirements.

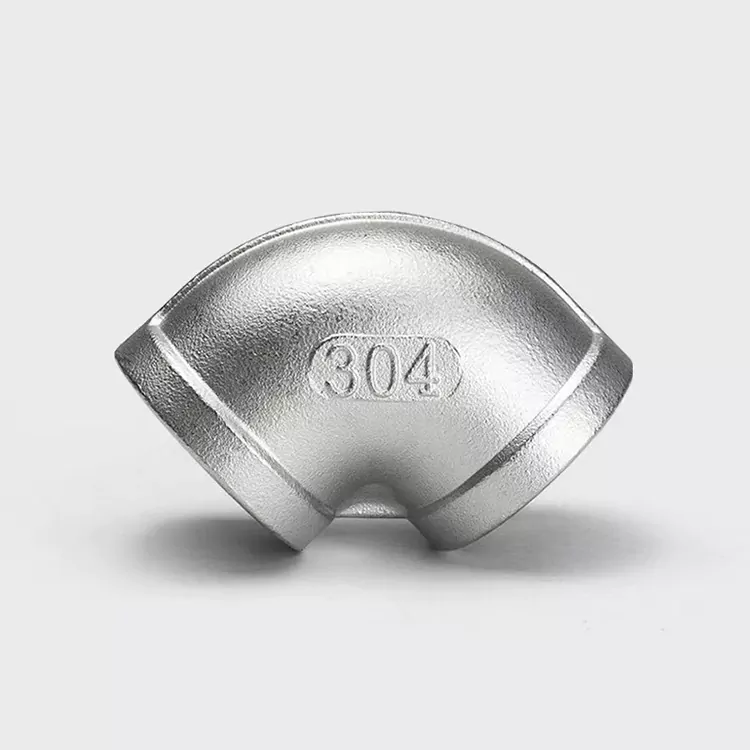

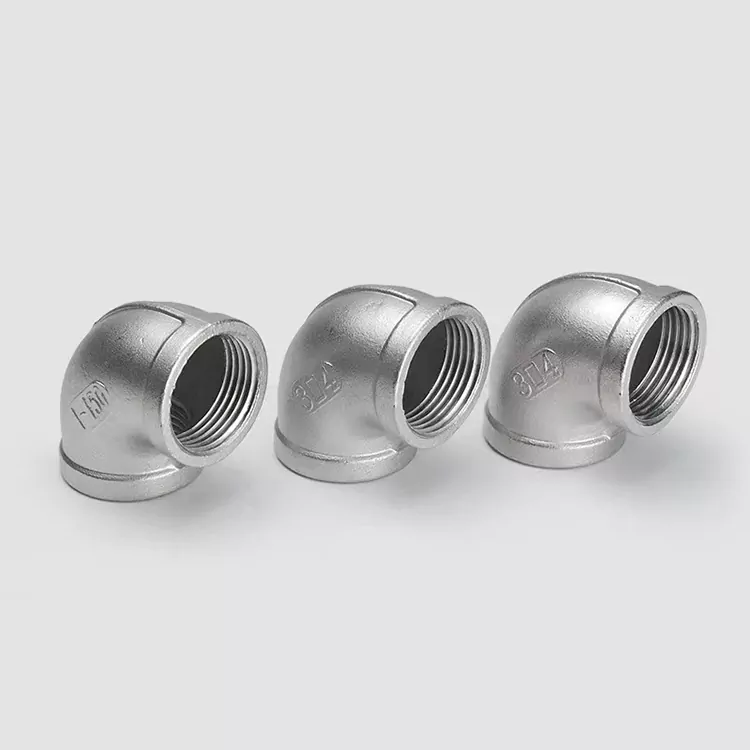

The female-thread elbow features internal threads on both ends, enabling precise 90° direction change. When combined with sealing tape, it achieves zero-leak performance, making it suitable for fire protection, gas, HVAC, and fluid systems.

The male-thread elbow adopts external-thread ends for direct installation without welding, making it ideal for confined spaces or environments where open flame is prohibited.

Both versions are manufactured from high-strength brass or stainless steel through precision forging in a one-piece structure. Thread accuracy strictly follows NPT/BSPT international standards. Reinforced wall thickness ensures high pressure resistance, corrosion resistance, and vibration resistance, while allowing repeated disassembly and maintenance for long-term stable operation.

Product Parameters

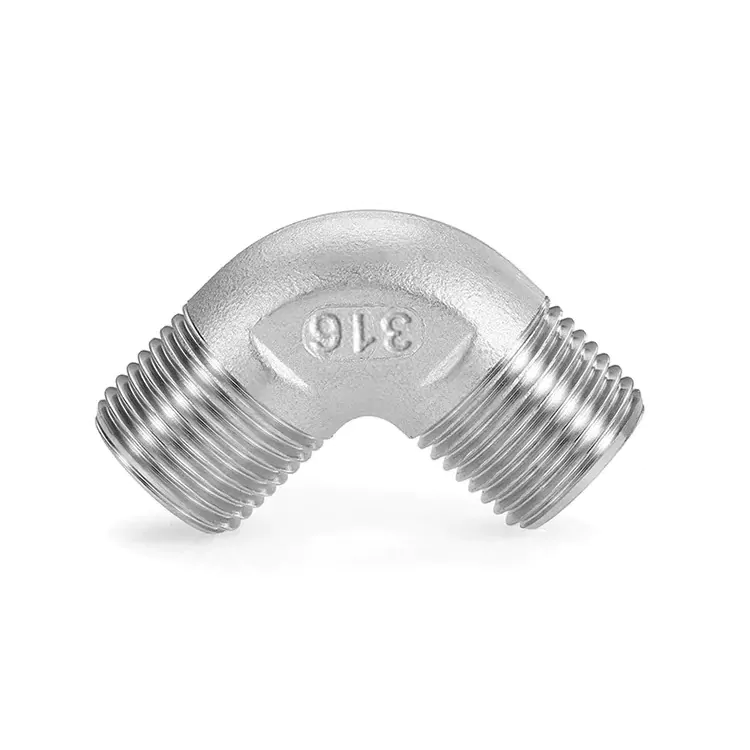

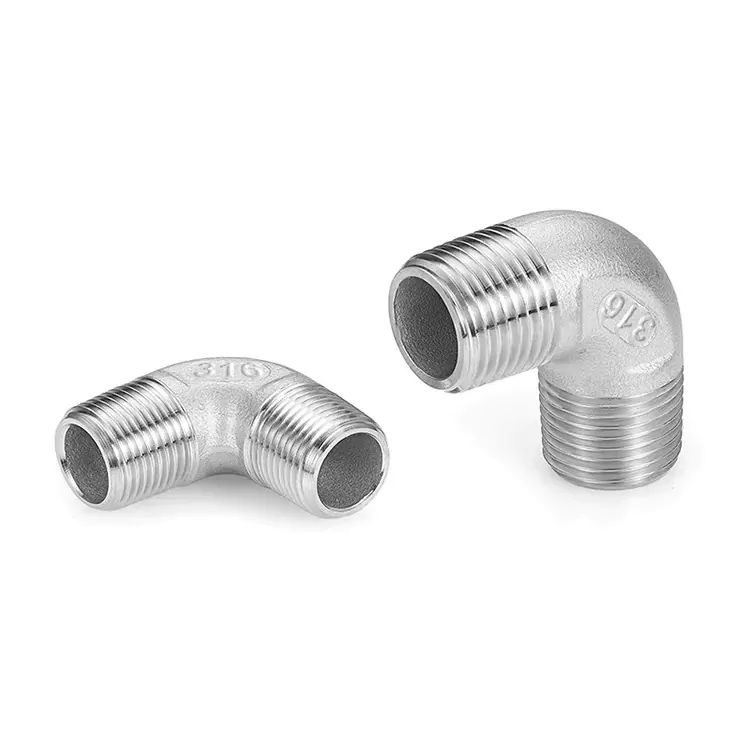

Related Product: Male Thread Elbow

Shenchi also supplies high-quality male-thread elbow fittings, forming a complete piping directional solution together with female-thread elbows.

Structure Design:
Both ends feature external threads for direct connection with female-thread components, valves, and equipment, eliminating the need for welding.

Installation Advantage:
Plug-and-play installation without welding, ideal for confined spaces or no-flame construction environments, significantly improving on-site efficiency.

Material & Manufacturing:
Made from high-strength brass or stainless steel, precision forged into a one-piece structure. Thread standards strictly comply with NPT/BSPT specifications.

Sealing Performance:
External threads combined with PTFE tape or sealant ensure reliable sealing and allow repeated disassembly and maintenance.

Application Fields:
Widely used in fire sprinkler systems, gas pipelines, industrial equipment interfaces, HVAC systems, and hydraulic/pneumatic pipelines.

System Compatibility:
Can be combined with female-thread elbows, tees, and valves to create flexible multi-angle piping systems for complex installations in space-limited environments.

Core Structural & Design Highlights

The male-thread elbow is engineered around the concept of“plug-and-play, weld-free connection.”

· External Thread Design: Both ends are precision external threads for direct connection without welding

· One-Piece Forging: High-strength brass or stainless steel structure eliminates welding-related stress corrosion risks

· Thread Precision: Fully compliant with NPT/BSPT standards, with enhanced wear resistance and anti-seizing performance

· Surface Protection: Eco-friendly anti-corrosion treatment for salt spray, humidity, and chemical environments

· Compact Structure: Suitable for confined or flame-restricted construction sites

Each unit undergoes airtightness testing and pressure impact testing to ensure reliable sealing performance before installation.

Core Performance Advantages

Shenchi male-thread elbow fittings deliver a combination ofweld-free installation and high reliability:

· High installation efficiency: No welding required, improving installation speed by over 60% compared to traditional methods

· Safe installation: Ideal for gas and chemical systems where open flame is prohibited

· Reliable sealing: Thread precision ensures zero-leak performance with sealing tape or thread sealant

· Reusable design: Supports repeated disassembly and maintenance for system upgrades

· High pressure & corrosion resistance: Reinforced wall design withstands pressure surges and harsh environments

· System compatibility: Works with tees, valves, and female-thread elbows for complete piping solutions
