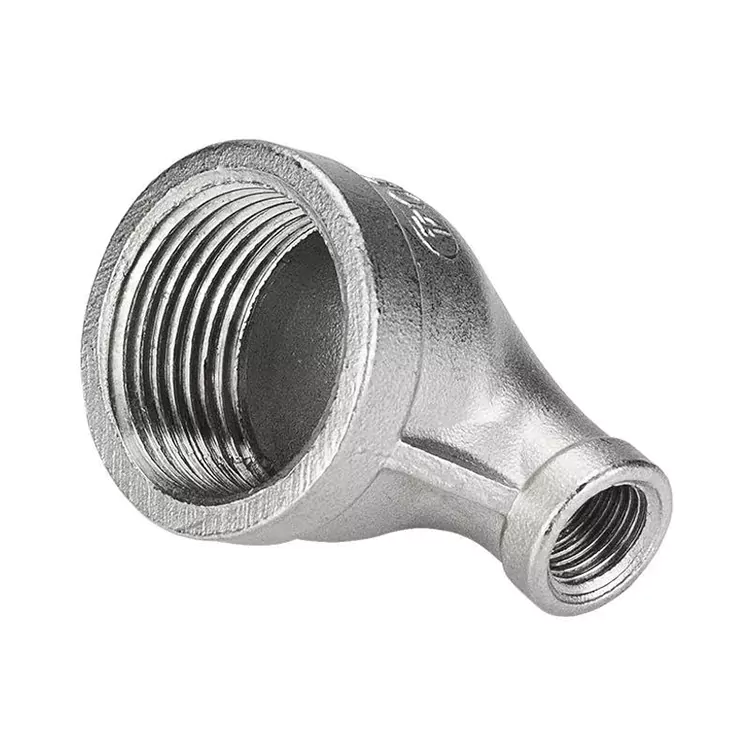

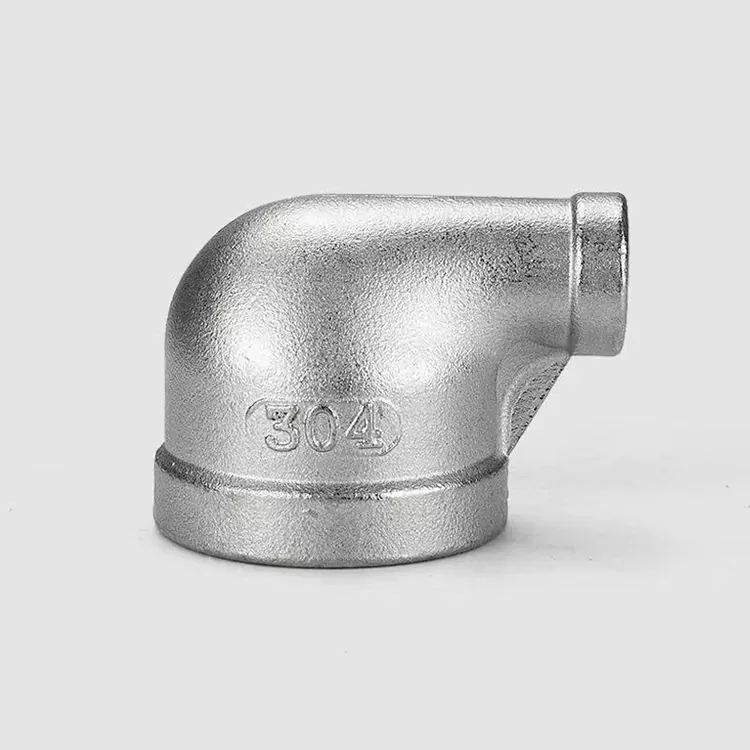

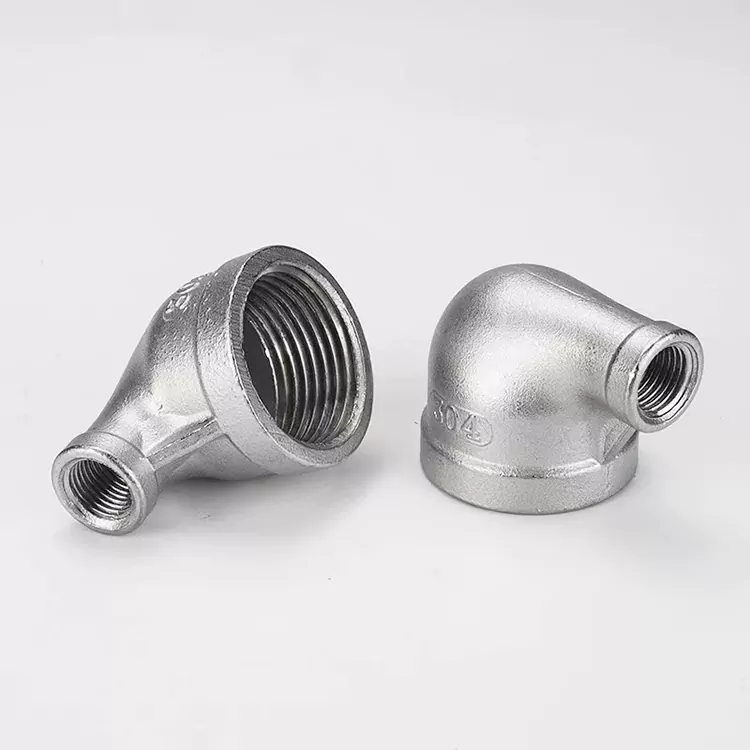

Reducing Female Threaded Elbow

Product Advantages

Shenchi factory’s durable Reducing Female Threaded Elbow integrates both “diameter reduction” and “direction change” into a single component. Its reducing advantages are reflected in four aspects:

1. Fewer Connection Points:
Traditional systems require an “equal elbow + reducer” combination. This product replaces them with a single fitting, reducing connection points by 50% and significantly lowering leakage risk.

2. Space-Saving Design:
The integrated structure is more compact and occupies less space, making it ideal for narrow pipe shafts, ceilings, and confined installation areas.

3. Higher Installation Efficiency:
One-piece installation completes both turning and reducing functions at once, reducing installation time by approximately 40% and improving construction efficiency.

4. Lower Procurement Cost:
One fitting replaces two components, reducing SKU complexity, inventory pressure, and overall procurement cost.

Product Parameters

High Temperature + High Pressure Resistance

Shenchi Reducing Female Threaded Elbow demonstrates excellent performance under extreme working conditions:

High Temperature Resistance:
Made of 304/316L stainless steel, operating temperature ranges from -20°C to 120°C, suitable for steam, hot oil systems, and industrial heating applications. Brass versions operate between -20°C and 110°C for standard conditions.

High Pressure Capacity:
Stainless steel versions support up to PN25 (approx. 2.5MPa), while brass versions support PN16–PN25, meeting requirements of hydraulic systems, fire protection, and gas pipelines.

Material Strength:
316L stainless steel with molybdenum addition provides excellent corrosion resistance in high temperature, high pressure, and chloride environments.

Reinforced Wall Thickness:
Optimized through structural analysis to maintain stability under pressure pulses.

Thermal Shock Resistance:
One-piece forged structure without welds prevents cracking under rapid temperature changes.

Each durable Reducing Female Threaded Elbow undergoes pressure impact and thermal aging tests to ensure long-term stability in demanding environments.

Leak-Free Sealing Performance

Shenchi ensures reliable, leak-free performance through precision engineering and strict manufacturing control:

Precision Female Threads:
Manufactured according to NPT or BSPT standards with high accuracy in taper and thread profile for tight engagement with male-thread fittings.

Sealing Mechanism:
Tapered thread compression combined with PTFE tape or thread sealant forms a composite sealing structure.

100% Air Tightness Testing:
Each unit is fully tested before shipment to ensure zero leakage.

High Pressure Sealing Stability:
Performs reliably under PN16–PN40 pressure levels for gas, liquid, and oil applications.

Reusable Connection:
Threaded design allows repeated assembly and disassembly with maintained sealing performance after resealing.

No Welding Defects:
One-piece forged structure eliminates porosity and cracking risks associated with welded joints.

Reliable sealing performance makes Shenchi Reducing Female Threaded Elbow widely used in fire protection, gas distribution, and hydraulic systems where zero leakage is critical.
