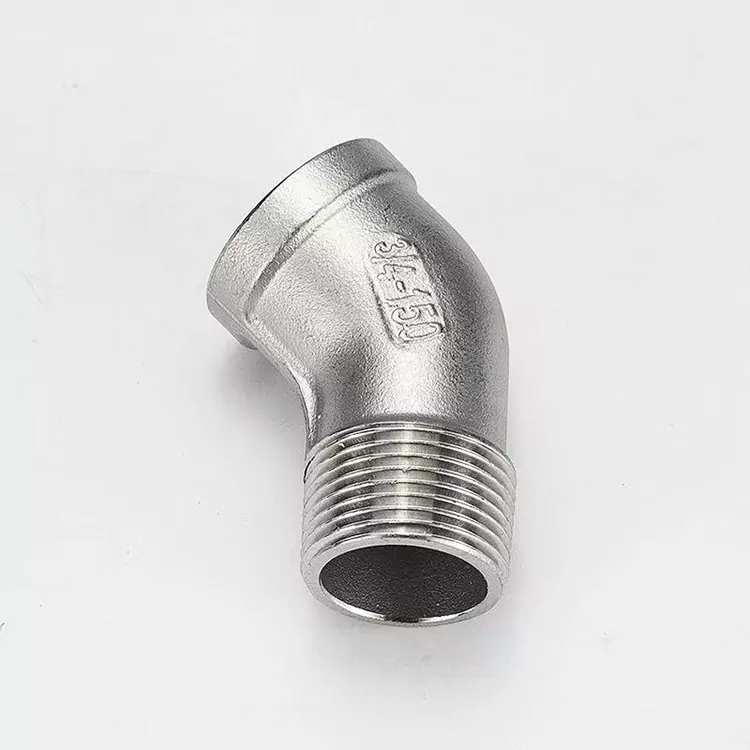

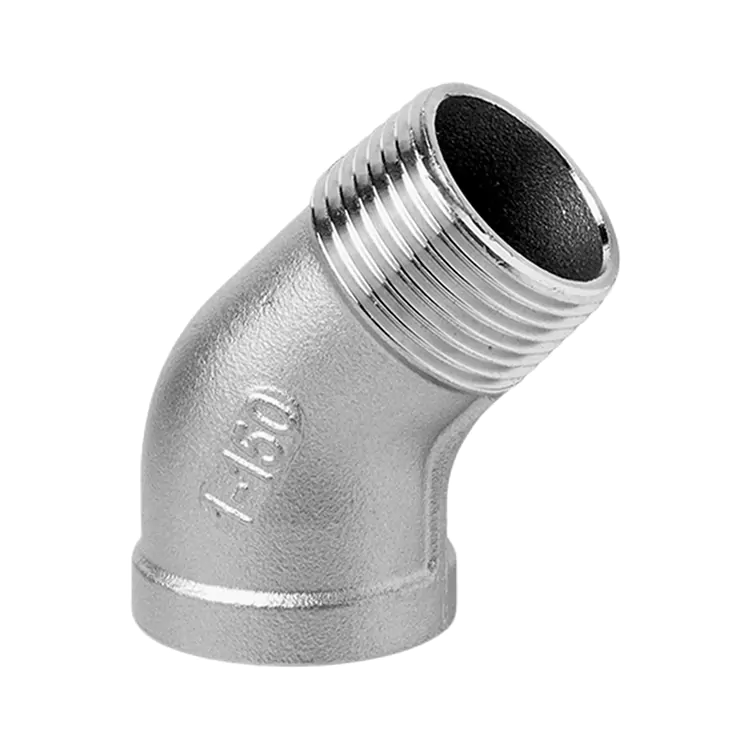

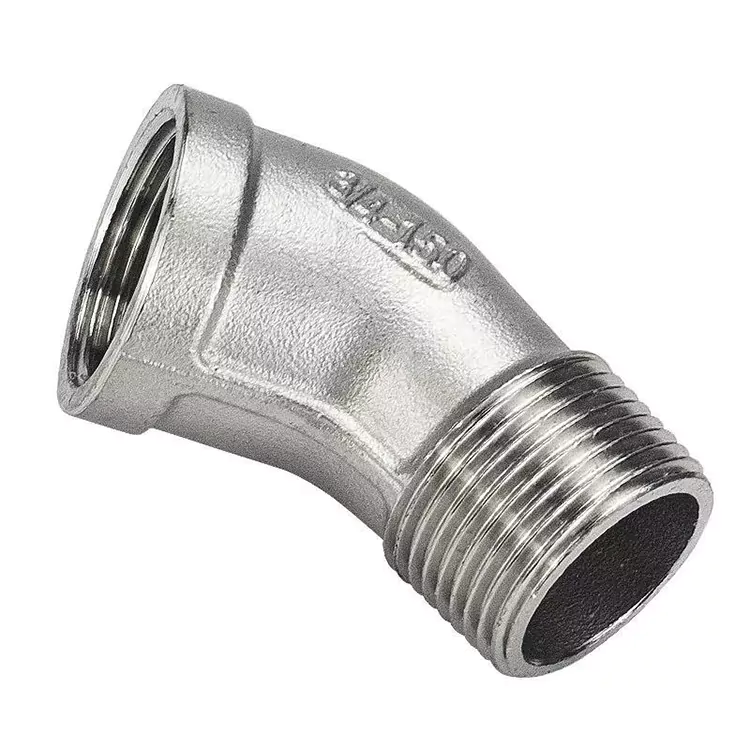

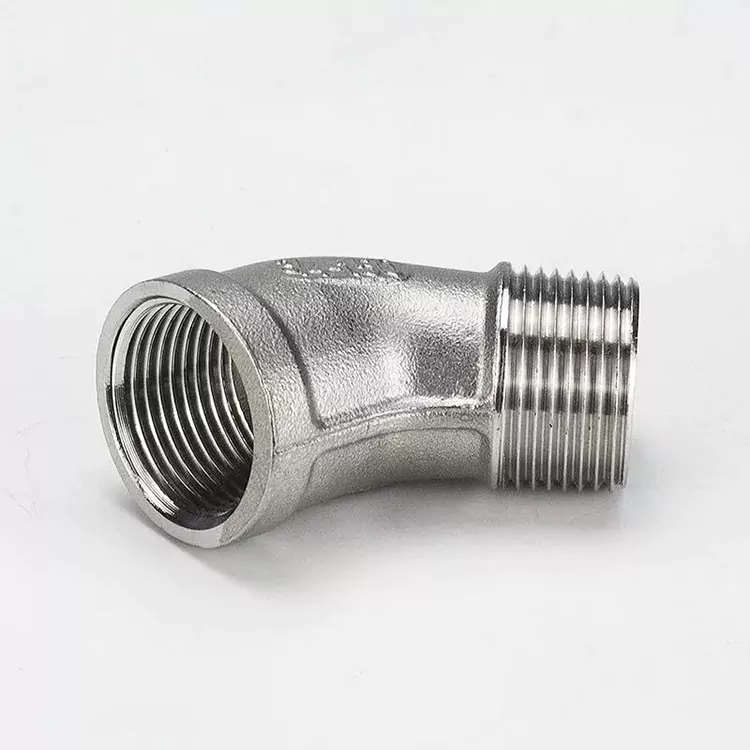

45 Degree Street Elbow

Brass vs Stainless Steel Options

Shenchi’s quality 45 Degree Street Elbow is available in both brass and stainless steel materials to meet different working conditions.

Brass version:
Made from high-quality national standard brass with 57%–60% copper content. It offers excellent thermal conductivity, high machining precision, and optional chrome-plated or polished finishes for a clean appearance. Suitable for plumbing, gas systems, sanitary applications, and light commercial use. Operating temperature ranges from -20°C to 110°C. It provides good corrosion resistance and cost efficiency.

Stainless steel version:
Made from 304 or 316L stainless steel for superior corrosion resistance. The 316L grade contains molybdenum, making it ideal for seawater, chemical processing, food, and pharmaceutical environments. It supports a wider temperature range of -20°C to 120°C and higher strength, suitable for high-pressure, high-temperature, and harsh conditions.

Both versions are manufactured through precision one-piece forging. Thread accuracy strictly follows NPT/BSPT international standards. The 45° design effectively reduces fluid resistance. Customers can select materials based on media type, pressure, temperature, and budget.

Product Parameters

Compatibility

The 45 Degree Street Elbow is designed with full compatibility for a wide range of piping systems, valves, and equipment.

· Thread compatibility: Supports NPT, BSPT, BSPP international standards for global pipe systems

· Size compatibility: Full range from 1/8" to 4", matching standard pipelines, valves, pumps, and instruments

· Material compatibility: Brass for copper, galvanized, and plastic pipes; stainless steel prevents galvanic corrosion in stainless systems

· Sealing compatibility: Works with PTFE tape, thread sealant, and O-rings for flexible installation

· System integration: Compatible with tees, elbows, and fittings for complete piping systems

· Retrofit compatibility: Direct replacement for existing standard fittings in renovation projects

Excellent compatibility ensures the 45 Degree Street Elbow can be easily integrated into both new and retrofit piping systems.

Technical Support

As a professional exporter of the 45 Degree Street Elbow, Shenchi provides full-cycle technical support:

· Selection guidance: Assistance based on media, pressure, temperature, and installation conditions

· Drawing confirmation: CAD/3D model support for custom orders

· Sample testing: Pre-production samples available for performance verification

· Troubleshooting support: Remote technical assistance for installation or usage issues

· Certification support: Material reports, inspection documents, and origin certificates for export clearance

Our technical team ensures every customer receives not only a product but complete engineering support.

Core Performance Advantages

The key advantages of the 45 Degree Street Elbow lie in itsdual-function integration andlow-flow-resistance design:

· Dual-thread design: One female end and one male end allow both directional change and thread conversion in a single fitting

· 45° low-angle flow: Reduces flow resistance by approximately 30% compared to 90° elbows

· Smooth internal flow path: No burrs or dead zones, ensuring stable fluid movement

· Precision threading: Fully compliant with international standards for tight and reliable sealing

· High pressure & temperature resistance: Stainless steel versions perform well under extreme conditions

· Reusable connection: Threaded design supports repeated disassembly and maintenance for system upgrades
