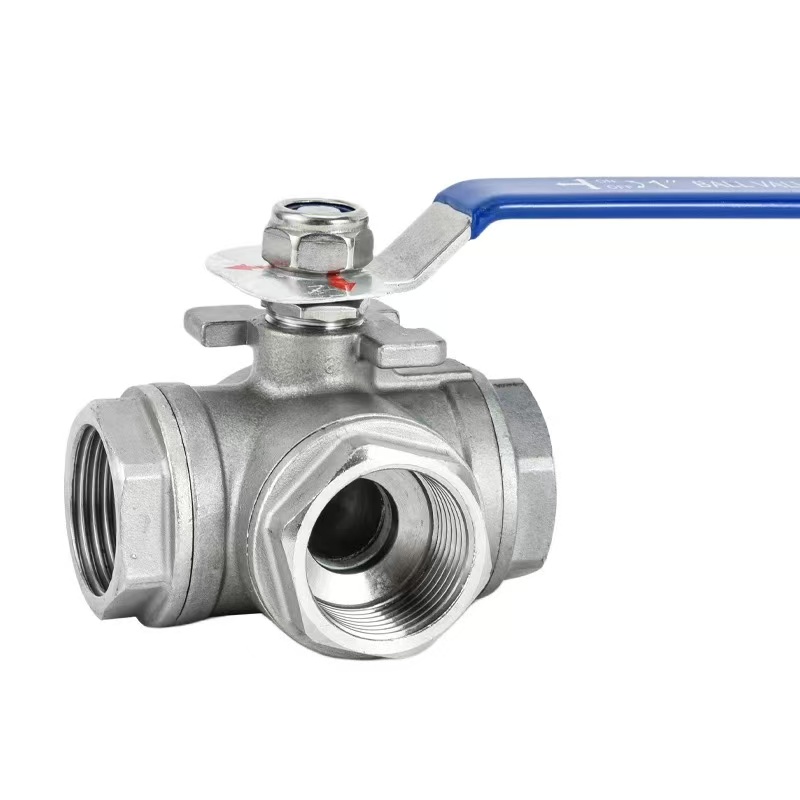

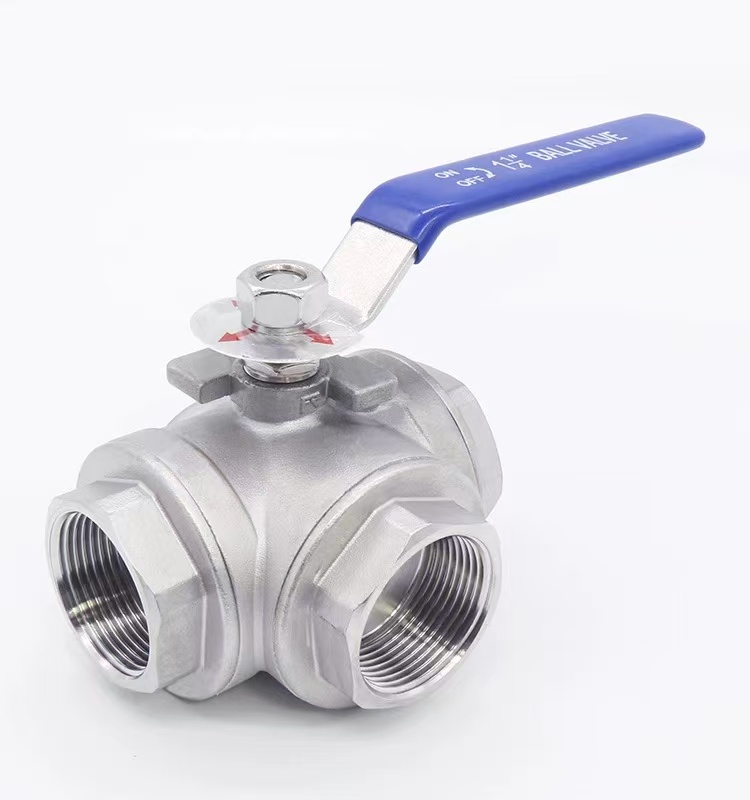

Manual three-way T-type ball valve
The manual three-way T-type ball valve is a type of valve with an internal ball core featuring a T-shaped channel, allowing for media flow distribution by manually rotating the handle. Shenchi, a Chinese manufacturer, offers manual three-way T-type ball valves that achieve both flow diversion and merging in a single valve. The T-shaped flow channel allows for flexible switching, and the valves are made of corrosion-resistant brass/stainless steel, offering effortless operation and a stable seal.
Shenchi produces both manual three-way L-port and T-port ball valves in the same series to meet different piping control needs.
The L-port valve features an L-shaped internal passage for flow switching, directing one inlet to either of two outlets—ideal for standby lines or alternating supply. The T-port valve features a T-shaped internal passage for diversion and merging, allowing one inlet to two outlets or two inlets to one outlet. Both are available in brass, SUS304, or SUS316L with EPDM seals, PN16 rating, and sizes DN6-DN100. Simple and reliable manual operation for water, oil, and gas systems.
Product Parameters
|
Product Name: Manual Three-Way T-Type Ball Valve |
Specifications: (1/8"-4") DN6-DN100 |
|
Nominal Pressure: PN16 |
Body Material: Brass, SUS304, SUS316L |
|
Standards: ANSI, BS, DIN, ISO, JIS |
Threads: NPT, BSP, BSPT, DIN, etc. |
|
Internal Metal Material: Brass, SUS304, SUS316L |
Medium Temperature: High Temperature, Low Temperature, Medium Temperature, Normal Temperature |
|
Operation Method: Manual |
Seal: EPDM |
|
Connection Method: Threaded Connection |
Applications: Water, Air, Gas, Oil, Liquids, etc. |
|
Origin: China |
Sample: Samples available |
China Manual Three-Way T-Type Ball Valve Direct Sale: Advantage of Factory Direct Supply by Shenchi.
As a direct seller of China manual three-way T-port ball valves, Shenchi has full in-house production from casting to assembly. Customers can obtain corrosion-resistant manual three-way T-port ball valves directly from the source without multiple intermediaries. We offer brass, SUS304, and SUS316L materials for various corrosive media. Factory-direct supply means shorter lead times, better pricing, and support for non-standard and OEM customization. Volume buyers enjoy tiered discounts, with all valves pressure and leak tested before shipment.
Buy discounted manual three-way T-type ball valves: Shenchi bulk purchase tiered pricing.
To buy discounted manual three-way T-port ball valves, Shenchi offers transparent tiered pricing.Long-term partners can sign annual framework agreements for locked-in prices. Discounts never mean lower standards—all valves use original brass or 304/316L stainless steel with EPDM seals. Sizes DN6-DN100 with NPT, BSP, BSPT, or DIN threads for global markets. Discounted quotes available upon request with no hidden fees.
Corrosion-resistant manual three-way T-type ball valve: Shenci material and dual sealing protection
Shenchi’s corrosion-resistant manual three-way T-port ball valves undergo strict material and sealing selection. Body and internal metal match—brass, SUS304, or SUS316L—to avoid galvanic corrosion. SUS316L excels in seawater, chlorine, and acid/alkali chemicals. EPDM seals are rated -20°C to +120°C, resistant to water, air, oil, and many chemicals. The T-port design supports one-in-two-out diversion or two-in-one-out mixing, widely used in water treatment, chemical batching, and cooling circulation systems for long-term reliability
Shenchi manual three-way T-type ball valve and L-type ball valve: the flow paths have clear division of labor, each performing its own function
The core value of Shenchi’s manual three-way T-port ball valve lies in the flexible control of the T-shaped flow path. With 90° or 180° lever rotation, it enables three modes: one-in-two-out diversion, two-in-one-out merging, and full-port three-way flow—ideal for supplying multiple devices or mixing different media. Meanwhile, Shenchi’s manual three-way L-port ball valve features an L-shaped flow path connecting only two perpendicular ports at a time, switching one inlet to either of two outlets—ideal for standby line alternation. T-port diverts/merges; L-port switches direction. Both use precision cast bodies with smooth, dead‑free flow paths and support ODM handle shapes and laser logos. Hot Tags: Manual three-way T-type ball valve, Wholesale, Buy, Customized, Professional, OEM, Purchase, Cheap, Discount, Low Price, Affordable, Buy Discount, Hot Sale, Quality, Durable, Easy-maintainable, Latest Selling, Classy, High-Efficiency, High-Performance, User-Friendly, Manufacturer, Supplier, Factory, in Stock, Exporter, Wholesaler, for Sale, Bulk Order, Factory Direct, Made in China, Price, Price List, Quotation, Factory Price, CE
