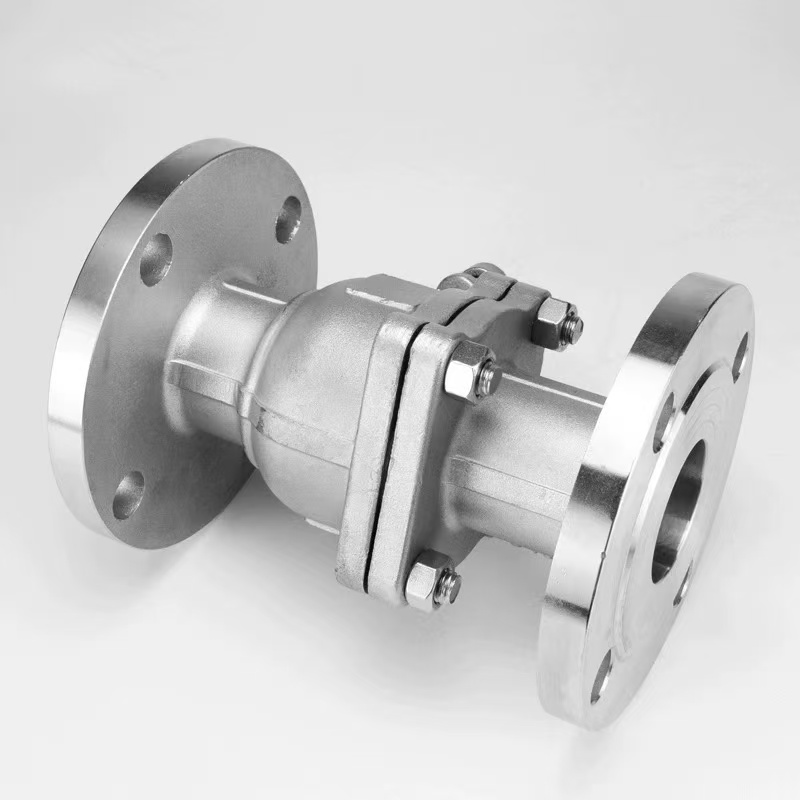

Steam Flange Ball Valve

What are the advantages of steam flange ball valves?

Shenchi factory's high-temperature resistant steam flange ball valves feature a body made of carefully selected brass, SUS304, or SUS316L, with a valve core made of copper or stainless steel. Equipped with a PPL high-temperature seal, they achieve zero leakage in steam environments up to 250℃. The flange connection is robust and reliable, resistant to water hammer impact, with low opening and closing torque and easy operation. Shenchi valves are corrosion-resistant and high-pressure resistant, suitable for steam pipe networks, heat exchange stations, and other operating conditions, significantly reducing maintenance frequency and making them ideal shut-off control components for steam systems.

PPL Sealing Temperature Range

Shenchi steam flange ball valves standardly utilize high-performance PPL seals. PPL (para-polystyrene) is a high-temperature resistant engineering plastic with a low-temperature limit of approximately -20℃. Above this temperature, the seals maintain good mechanical strength and dimensional stability. When the temperature drops below -20℃, PPL material gradually loses its toughness, becoming brittle and hard, potentially leading to seal failure.

Regarding high-temperature resistance, PPL can withstand high-temperature environments of 260℃-300℃ for extended periods, performing particularly well under saturated steam conditions, without softening or deforming like ordinary PTFE. For scenarios requiring even lower operating temperatures, Shenchi offers an EPDM sealing version as an alternative; EPDM can withstand temperatures as low as -40℃. The core competitiveness of a high-sealing steam flange ball valve lies in the precise matching of the sealing material to the on-site operating conditions.

Applicable Media and Temperature Range

Shenchi steam flange ball valves are suitable for a wide range of media, including water, air, gas, oil, various liquids, and most importantly, saturated steam. The media temperature range covers high, medium, normal, and low temperatures, truly achieving full temperature coverage. Regarding the selection of sealing materials: when equipped with PPL seals, the applicable temperature range is -20℃ to 260℃, with a maximum short-term withstand temperature of 300℃, making it the preferred solution for steam pipelines; when equipped with EPDM seals, the applicable temperature range is -40℃ to 120℃, making it more suitable for low-temperature environments, hot water systems, or low-pressure steam conditions.

Chinese steam flange ball valve manufacturer Shenchi recommends that customers select sealing materials based on actual operating temperatures. If you are unsure how to choose, you can provide specific parameters, and Shenchi's technical team will recommend the optimal configuration for you. A high-quality steam flange ball valve must not only be leak-proof at high temperatures but also reliable during low-temperature startup; Shenchi's dual-seal option is designed precisely for this purpose.
