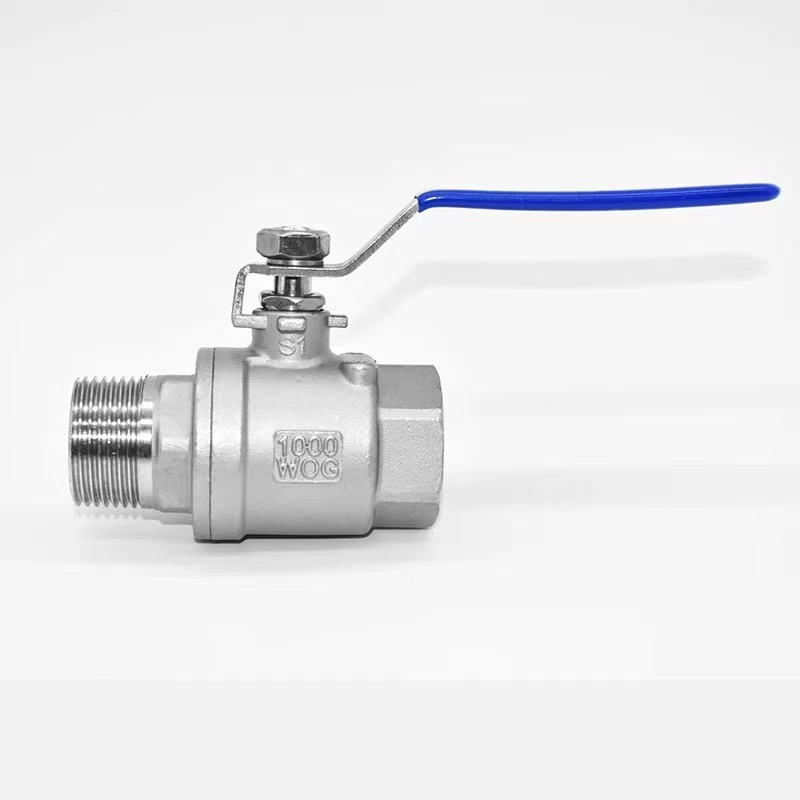

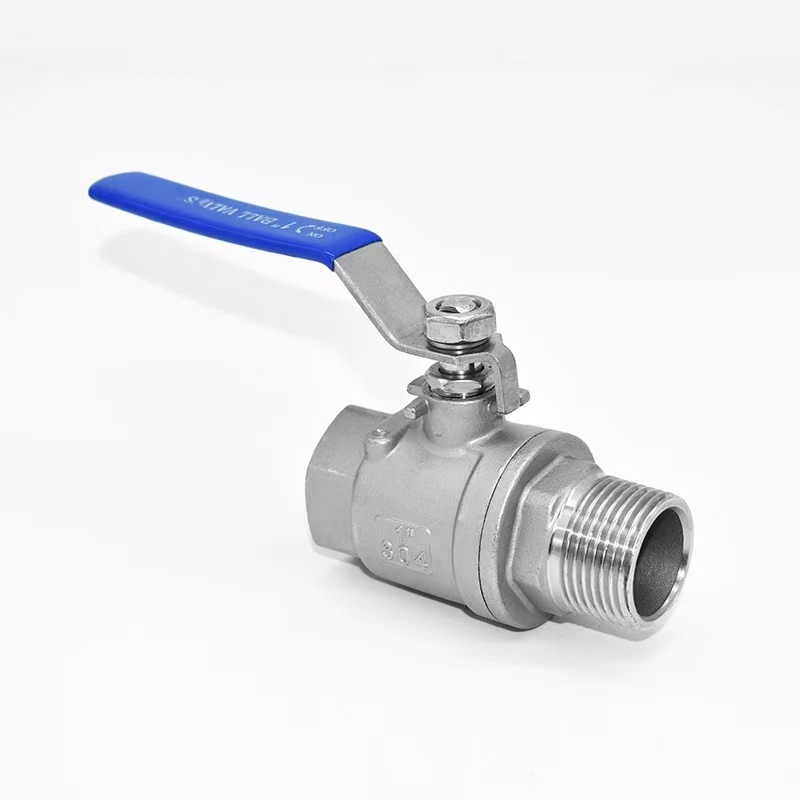

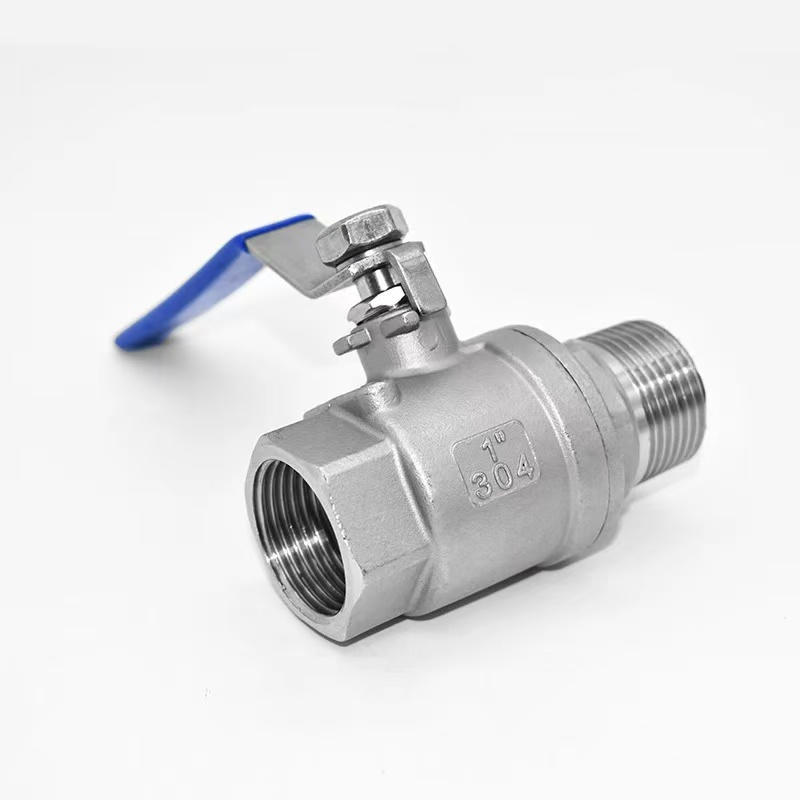

Two-piece internal and external thread ball valve

Shenchi | High-Quality Two-Piece Internal and External Thread Ball Valve: Fluid Control at Your Fingertips

The working principle of Shenchi's high-quality two-piece internal and external thread ball valve is simple yet effective. Inside the valve body, a spherical ball with a circular through-hole is connected to a handle via a valve stem. When the handle is turned 90 degrees, the ball rotates accordingly. When the ball's through-hole is aligned parallel to the pipeline, fluid flows freely. When the handle is turned to a 90-degree position, the solid surface of the ball blocks the flow path, achieving rapid shut-off. This quarter-turn angle stroke design enables fast, convenient operation with reliable sealing performance. Manufactured from premium materials including brass, SUS304, and SUS316L, these valves offer excellent corrosion resistance and high-pressure tolerance, making them suitable for water, oil, gas, and various other media.

Product Parameters

Engineering Selection Recommendation: Material and Medium Matching Scheme for Shenchí Two-Piece Internal and External Thread Ball Valve

In engineering selection, the body material and internal metal material must remain consistent. Shenchi Two-Piece Inner and Outer Thread Ball Valve offers three material options: brass, SUS304, and SUS316L. Brass is suitable for water and air; SUS304 for mild corrosive liquids; and SUS316L for petroleum and chemical media. Proper matching extends valve life and reduces maintenance costs.

Wide temperature range application capability: The Shench two-piece internal and external threaded ball valve's stability in high and low temperature media

Shenchi’s Two-Piece Inner and Outer Thread Ball Valve uses EPDM seals, which are resistant to aging and ozone, remaining elastic from -40°C to +120°C. For frequent on-off manual operations, EPDM delivers over 20,000 leak-free cycles. Compared to ordinary rubber, EPDM is particularly stable in air, water, and low-pressure gas media, making it ideal for long-term unattended piping systems.

Maintenance and On-Site Replacement Convenience: Structural Design Advantages of the Shench Two-Piece Male-Female Thread Ball Valve

Shenchi’s Two-Piece Inner and Outer Thread Ball Valve covers four temperature ranges: high, low, medium, and normal. Thanks to the thermal stability of SUS304/SUS316L and the low-temperature toughness of EPDM seals, the valve operates stably in -20℃ chilled water systems and +120℃ hot water or low-pressure steam lines. The brass version is recommended for above-0℃ ambient conditions to avoid freeze cracking.
