45-Degree Elbow with Mounting Bracket

What is a 45-Degree Elbow with Mounting Bracket?

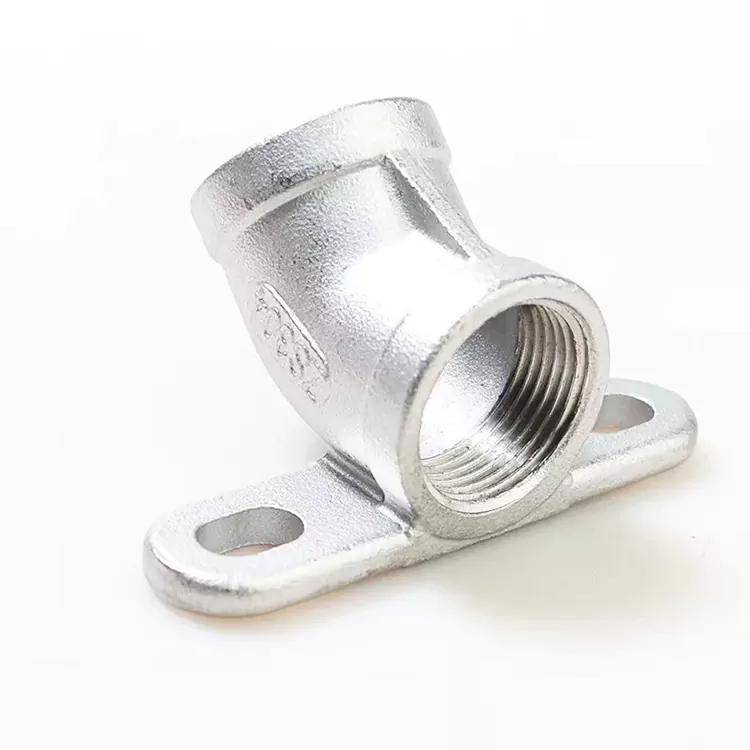

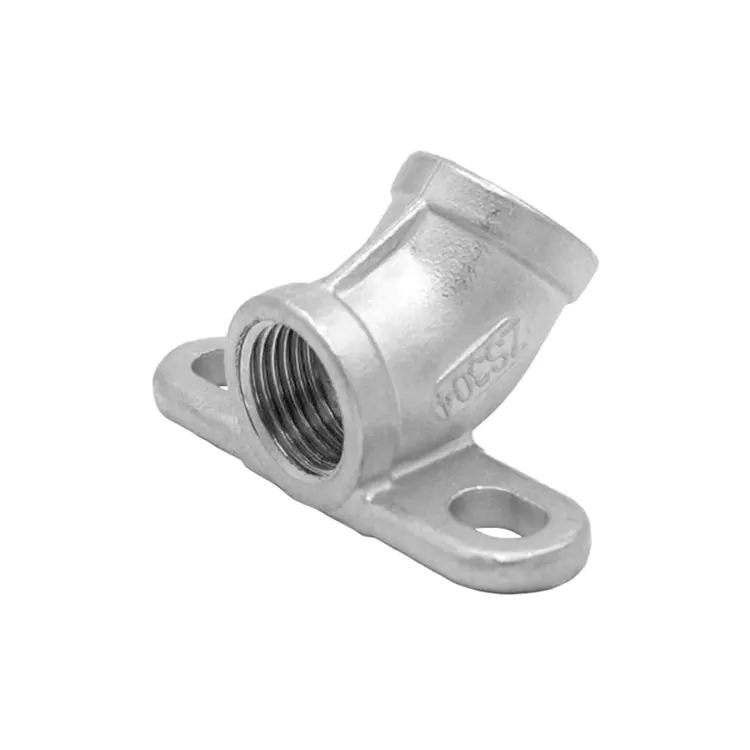

Shenchi’s 45-Degree Elbow with Mounting Bracket is a pipe fitting that combines flow direction change and structural support into one integrated component. With a 45° angle design, it effectively reduces fluid resistance, while the mounting base allows quick fixation to walls or brackets. This easy-to-install 45-degree elbow with mounting bracket significantly reduces construction time and labor costs.

The product is made of high-quality brass or stainless steel, with precision-machined internal threads ensuring reliable sealing and zero leakage. Shenchi, as a professional manufacturer, also supplies the matching 90-Degree Elbow with Mounting Bracket to meet different piping direction requirements, widely used in water supply & drainage, HVAC systems, and industrial pipelines.

Product Parameters

Matching Product: 90-Degree Elbow with Mounting Bracket

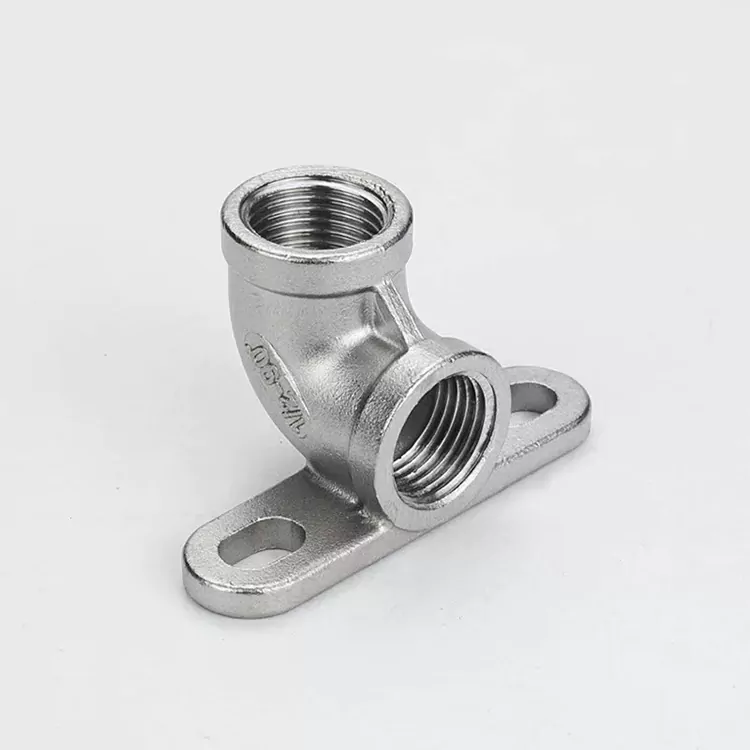

Shenchi also supplies the 90-Degree Elbow with Mounting Bracket, forming a complete product series together with the 45° version. The 90° model is designed for right-angle piping applications and also features a mounting base structure and precision internal threads to ensure leak-free sealing performance.

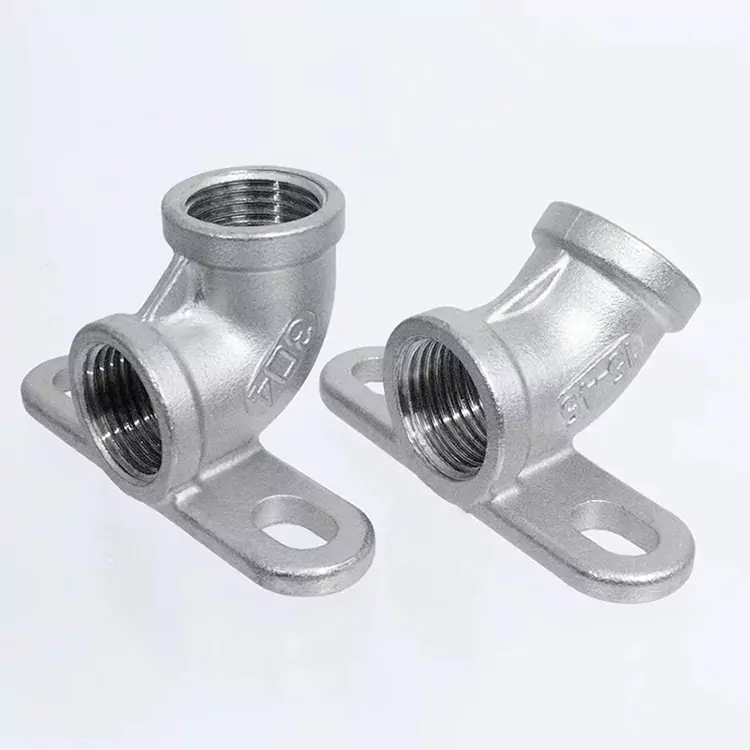

Whether 45° or 90°, Shenchi bracketed elbow series is designed for easy installation and stable quality, meeting diverse requirements in plumbing, HVAC, and industrial piping systems.

Core Structure & Design Highlights

Shenchi 45-Degree Elbow with Mounting Bracket features two major structural innovations:

45° Optimized Angle:
Compared with 90° elbows, the 45° design significantly reduces flow resistance and pressure loss while allowing more flexible pipeline routing.

Precision Internal Threads:
Manufactured using high-precision thread rolling technology, ensuring tight engagement and enhanced sealing reliability.

These design advantages make it a highly practical 45-degree elbow with mounting bracket that simplifies on-site installation while maintaining technical performance.

Easy Installation | Reduced Labor Cost

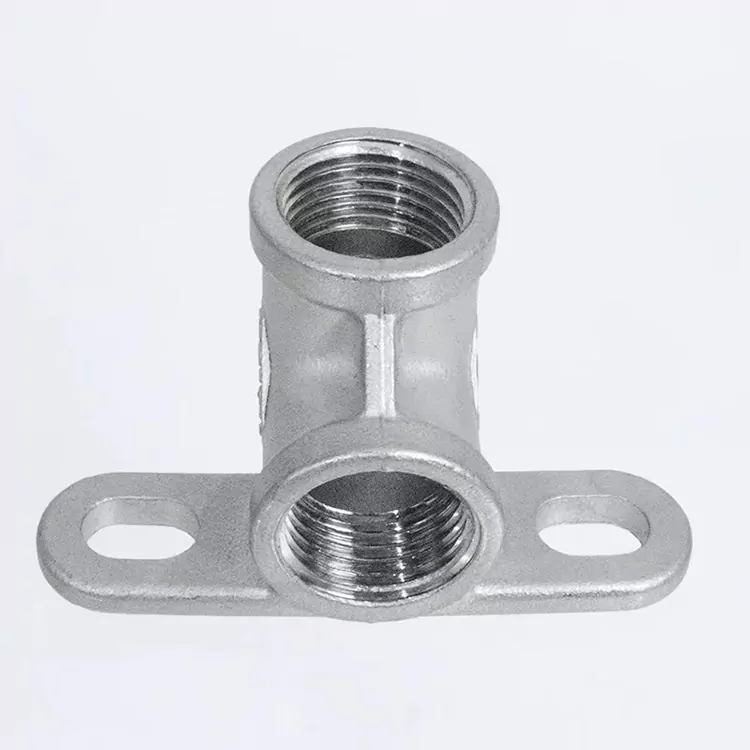

Shenchi prioritizes installation efficiency in product design. The mounting base includes standardized fixing holes for direct installation onto walls, brackets, or equipment structures without additional processing.

The internal threaded ports follow standard specifications, ensuring compatibility with common pipe fittings and eliminating the need for special tools during assembly. For bulk project orders, this standardized design significantly improves construction speed, reduces labor costs, and shortens project timelines.

As a leading manufacturer of 45-degree elbows with mounting brackets in China, Shenchi is committed to enhancing customer efficiency through user-friendly and installation-optimized products.
